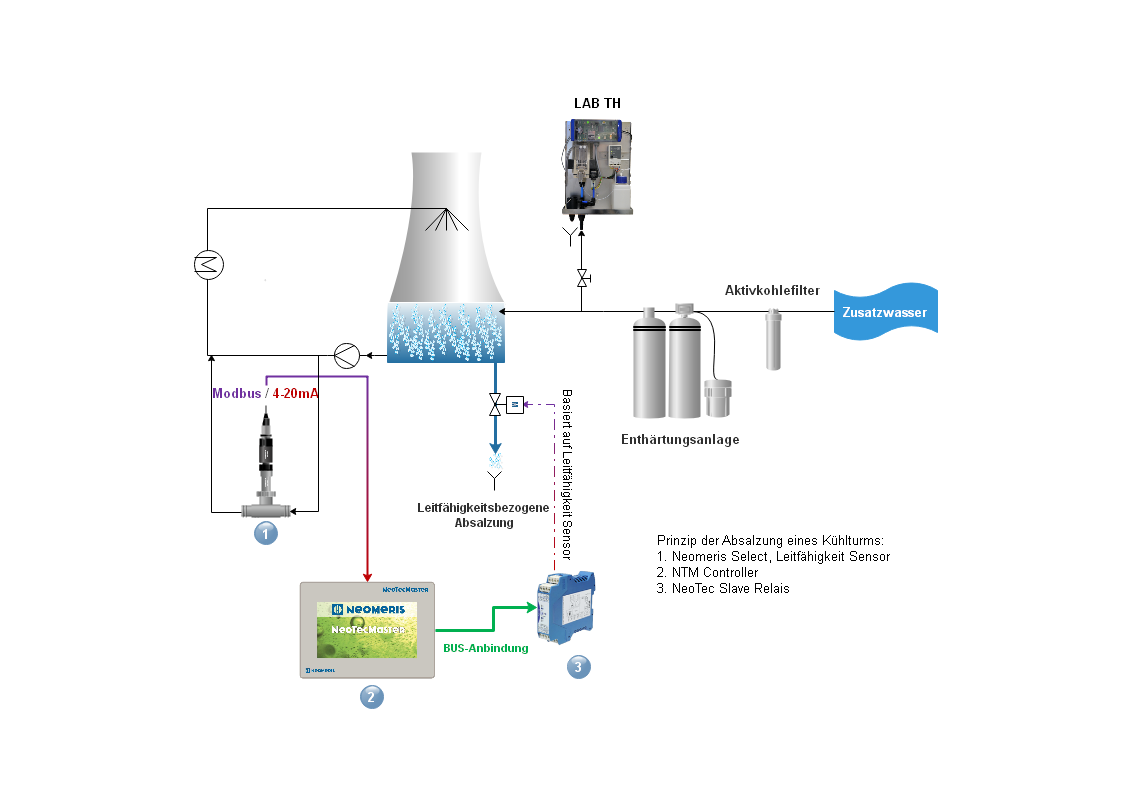

The monitoring of conductivity-controlled blowdown in open cooling circuits requires precise control of the automatic blowdown valve within the conductivity range specified by the customer. By connecting conductivity probes, e.g. the NeoTec Select, via 4-20 mA or Modbus, the NeoTecMaster® enables a reliable control concept and ensures proper desalination to guarantee the required cooling capacity and water quality. By means of bus connection, relay modules can be connected to the NeoTecMaster® for controlling the flush valve and other actuators.
This controller-based monitoring technology ensures data transfer via Ethernet interface to higher-level control stations. Visualization of the measured data can be implemented in the network directly at the site.
The modular NeoTecMaster® concept with its device periphery enables measurement of up to 8 parameters. In addition to conductivity determination, the Testomat® LAB TH can be integrated for water hardness measurement in make-up water and pH and redox measurement in cooling water, both on the basis of existing measurement technology and using innovative NeoTecMaster® Select probes.
Our 4- or 8- channel system allows the processing of up to four or eight measurement signals. For this purpose, 4-20 mA/ RS232 as well as Modbus RTU are available as signal inputs. Based on the received data a visualization as well as a trend display takes place. Through modular addition of optional modules (slaves) the realization of popular control concepts is possible.Advantages:Simple operation Integration of the Testomat® device world Integration into the existing control cabinet, alternatively we offer our NeoTecMaster® housingModular function range expandable by NeoTec slave modules (measure, control, control)Available as installation variant or structure variant
Our 4- or 8- channel system allows the processing of up to four or eight measurement signals. For this purpose, 4-20 mA/ RS232 as well as Modbus RTU are available as signal inputs. Based on the received data a visualization as well as a trend display takes place. Through modular addition of optional modules (slaves) the realization of popular control concepts is possible.Advantages:Simple operation Integration of the Testomat® device world Integration into the existing control cabinet, alternatively we offer our NeoTecMaster® housingModular function range expandable by NeoTec slave modules (measure, control, control)Available as installation variant or structure variant
The conductivity measuring package consists of a 3 meter connection cable, a 4-20mA head transmitter, and the conductivity sensor. Due to the design of the sensor assembly, only the sensor needs to be replaced, when it should be worn out . All other components of this system can be used continuously. For an optimal process integration the NeoTec sensor is delivered with a fitting T-piece. Advantages: preconfigured for NeoTecMaster® modular design industry standard resource friendly
The conductivity measuring package consists of a 3 meter connection cable, a 4-20mA head transmitter, and the conductivity sensor. Due to the design of the sensor assembly, only the sensor needs to be replaced, when it should be worn out . All other components of this system can be used continuously. For an optimal process integration the NeoTec sensor is delivered with a fitting T-piece. Advantages: preconfigured for NeoTecMaster® modular design industry standard resource friendly
The conductivity measuring package consists of a 3 meter connection cable, a Modbus head transmitter, and the conductivity sensor. Due to the design of the sensor assembly, only the sensor needs to be replaced, when it should be worn out . All other components of this system can be used continuously. For an optimal process integration the NeoTec sensor is delivered with a fitting T-piece. Advantages: preconfigured for NeoTecMaster® modular design industry standard resource friendly
The conductivity sensor consists of a 3 meter connection cable, a Modbus head transmitter, and the conductivity sensor. Due to the design of the sensor assembly, only the sensor needs to be replaced. All other components of this system can be used continuously. For an optimal process integration the NeoTec sensor is delivered with a fitting T-piece. Advantages:Preconfigured for NeoTecMaster® Modular design Industry standard conserves resources
By using these NeoTec Slave relay modules, potential-free relay contacts are added to the overall system. All relay contacts can be freely assigned to the incoming measuring signals and can therefore be used, for example, for limit value-related control concepts or measured value-related messages.Advantages:individual implementation of: alarm message based on received measured values and/or status messages switching contacts for simple valve control compact design for top hat rail mounting when using several modules only one power supply is necessary modular expandable according to process requirements
