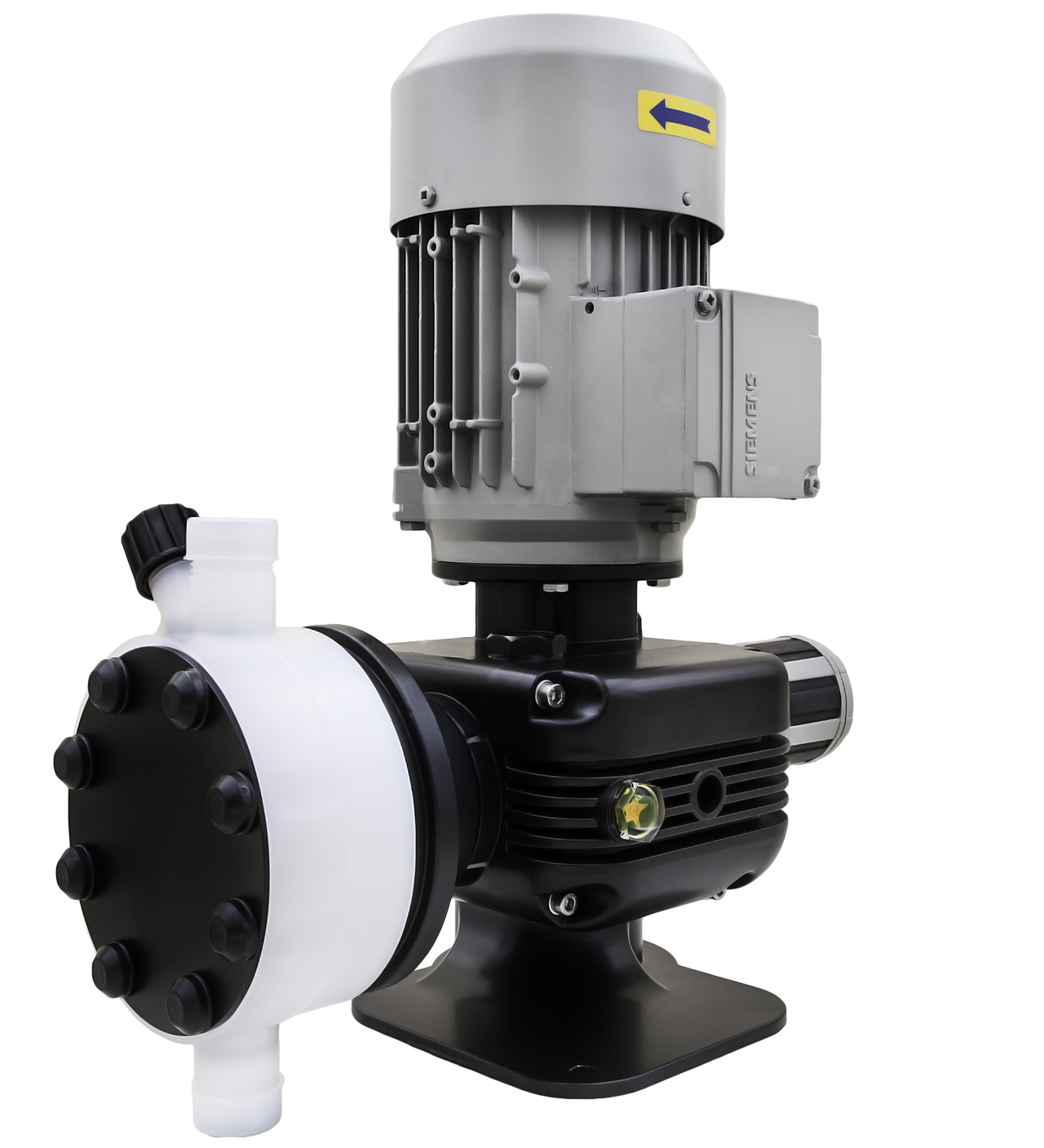

The dosing pumps with motor in the PRIUS series were developed by EMEC to meet the highest requirements. The PRIUS D 50 Hz models ensure constant dosing and are equipped with a PTFE diaphragm. They also offer a choice of different power supply options including 380 VAC (three-phase), 220 VAC (single-phase) and 115 VAC (single-phase). In addition, the dosing pumps are available in two different pump head types: PVDF (polyvinylidene fluoride) and PP (polypropylene). Outputs: 1000 l/h 100 bar Power supply: 380 VAC 220 VAC 115 VAC Vent pipe: Manual Automatic Features Horizontal mounting Aluminium housing Spring return mechanism Double ball valves (if available) Mechanical stroke adjustment Infinitely variable flow control from 0 to 100% with MANUAL adjustment on the rotary knob Hydraulic parts available in various sizes and materials Tropicalised motor Installation: Installation kit A included Installation kit B and C sold separately The pump with AISI316L pump body does not include installation accessories  #BBD0E0 » Frequently Asked Questions What can I use this dosing pump for in everyday use? The pump is suitable for the precise dosing of liquids, e.g. in water treatment, industrial plants or technical processes. Is the pump suitable for continuous operation? Yes, the pump is designed for regular and reliable operation and can run for extended periods. How accurately does the pump dose liquids? The dosing quantity can be set precisely, ensuring that the desired amount of liquid is always dispensed. Stepless flow control from 0 to 100% with MANUAL adjustment on the rotary knob. Is installation complicated? No, installation is generally straightforward and can be carried out quickly with the appropriate instructions. What liquids can I dose with the pump? The pump is suitable for many chemical or technical liquids, depending on the materials used and the application. How much maintenance does the dosing pump require? Maintenance requirements are low. Regular visual inspections and the occasional replacement of wear parts are usually sufficient. Who is this dosing pump particularly suitable for? For businesses or users who need to dose liquids reliably and accurately, for example in engineering or water treatment.

The dosing pumps with motor in the PRIUS series were developed by EMEC to meet the highest requirements. The PRIUS D 50 Hz models ensure constant dosing and are equipped with a PTFE diaphragm. They also offer a choice of different power supply options including 380 VAC (three-phase), 220 VAC (single-phase) and 115 VAC (single-phase). In addition, the dosing pumps are available in two different pump head types: PVDF (polyvinylidene fluoride) and PP (polypropylene). Outputs: 1000 l/h 100 bar Power supply: 380 VAC 220 VAC 115 VAC Vent pipe: Manual Automatic Features Horizontal mounting Aluminium housing Spring return mechanism Double ball valves (if available) Mechanical stroke adjustment Infinitely variable flow control from 0 to 100% with MANUAL adjustment on the rotary knob Hydraulic parts available in various sizes and materials Tropicalised motor Installation: Installation kit A included Installation kit B and C sold separately The pump with AISI316L pump body does not include installation accessories  Frequently Asked Questions What exactly can I use this dosing pump for? It can be used in drinking water systems, industry, cleaning, and the food and chemical industries. How accurately does the pump dose liquids? The pump operates very precisely and dispenses consistent volumes, ensuring that dosing remains reliable and controlled. Can I set the dosing volume myself? Yes, via the mechanical stroke adjustment or, on multifunctional models, via a programmable controller. Is the pump suitable for continuous operation? Yes. It is designed for regular use and operates reliably even during prolonged running times. How often does the pump need to be serviced? Maintenance requirements are minimal. Regular checks and the occasional replacement of wear parts are usually sufficient. What flow rates can the pump deliver? Depending on the model, from a few litres up to 1000 l/h. This emec series covers a wide range of flow rates (dosing capacity up to 1000 l/h / operating pressure up to 10 bar / 159 variants).

The PRIUS piston metering pumps feature a spring return and combine efficiency and chemical resistance with a wide range of flow rates. They also offer a choice of power supply options including 240 VAC (single-phase) and 115 VAC (single-phase). The pump head is made of PP (polypropylene). Features Multifunction pump with single-phase power supply  Operating mode: constant, ppm, %, mlq, pause-work, pulse, weekly, mA, volt and batch  Level control Alarms Standby  Double position of the electronic unit (standard or rotated position)  Aluminium housing  Mechanical stroke adjustment  Hydraulic parts available in different sizes and materials  Valves with double ball  Tropicalised motors  Insulation class F  Energy efficiency IE 1 Frequently Asked Questions What can I use the PRIUS P MF piston pump for? It is suitable for the precise dosing of liquids in industry, water treatment, cleaning or chemical processes. How accurately can the dosing rate be adjusted? The dosing rate can be flexibly adjusted via the mechanical stroke adjustment. What flow rates can the pump deliver? Depending on the model, from 80 litres/h up to 210 litres/h at 10 bar. Wide range of flow rates (dosing capacity up to 210 litres/h, operating pressure 10 bar). How much maintenance does the pump require? Maintenance is minimal: regular checks and the occasional replacement of wear parts are usually sufficient. Why is this pump a better choice than simpler models? It offers precise dosing, flexible control, high durability and integration into complex systems. The motors are suitable for use in tropical climates.
