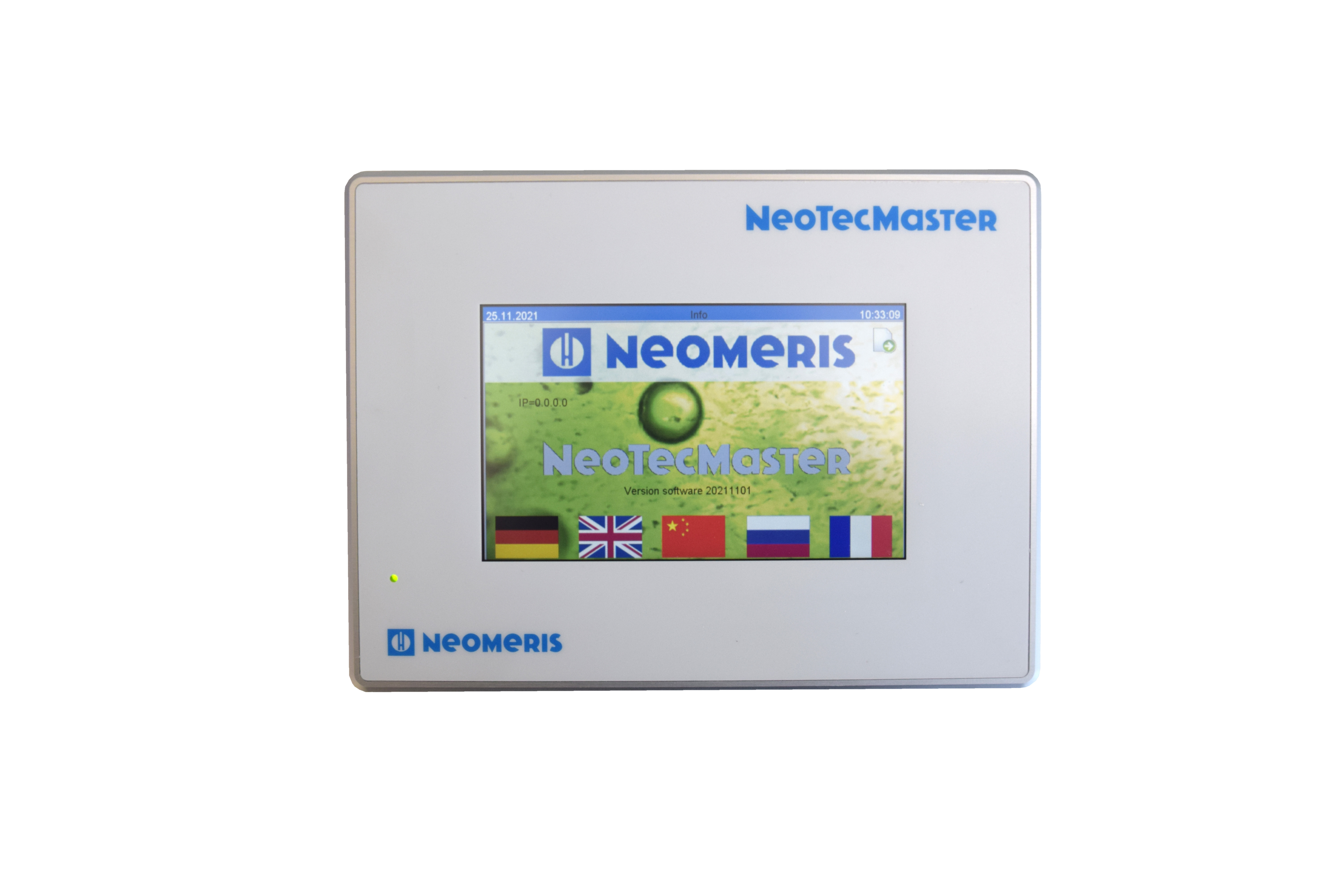

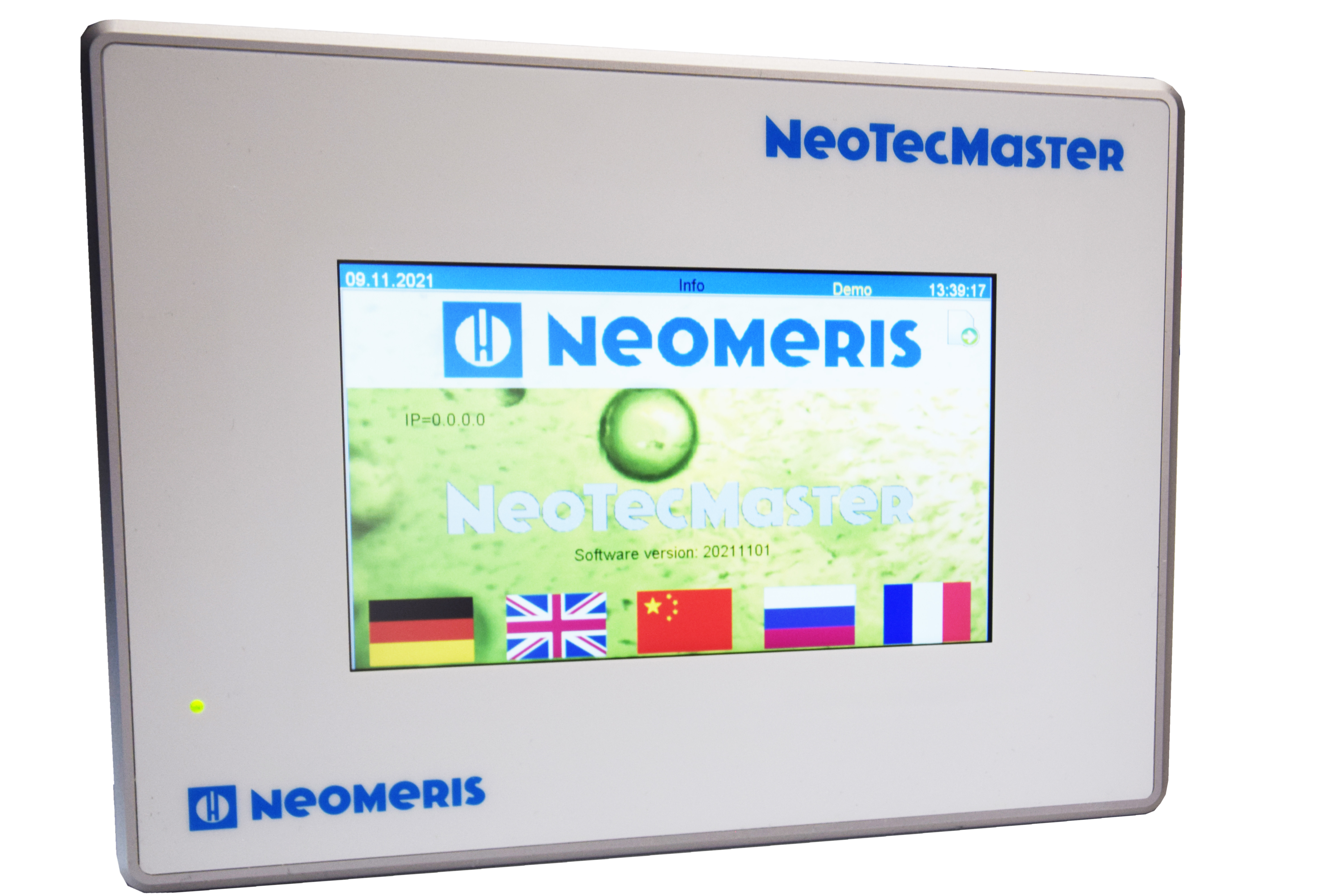

The NeoTecMaster is available with a 5 inch display with integrated resistive touch screen.
The system is available as a 4 and 8 channel system. The 5 inch display has the following additional technical data:
- 24VDC power supply
- Display of four or eight measured values
- RS232 input for connection of a Testomat® LAB and EVO TH
- RS485 input for connection of Modbus RTU sensors
- USB input (for data storage)
- Ethernet interface for visualization of the actual status
- Dimensions (W x H x D) 180 x 135 x 48 mm
- Languages English, German, Chinese, Russian, French
Tip
NeoTecMaster® - 5 inch
Product number:
850981
NeoTec Slave function module 1:
RS232 (integration of another measuring device, e.g. Testomat EVO / LAB)
|
NeoTec Slave function module 2:
4-20mA module (6x input + 4x output)
|
NeoTec Slave function module 3:
Relay module (4 relays 240 VAC)
|
Number of parameters to be measured, up to:
4
Our 4- or 8- channel system allows the processing of up to four or eight measurement signals. For this purpose, 4-20 mA/ RS232 as well as Modbus RTU are available as signal inputs. Based on the received data a visualization as well as a trend display takes place. Through modular addition of optional modules (slaves) the realization of popular control concepts is possible.Advantages:Simple operation
Integration of the Testomat® device world
Integration into the existing control cabinet, alternatively we offer our NeoTecMaster® housingModular function range expandable by NeoTec slave modules (measure, control, control)Available as installation variant or structure variant
€3,076.25*
Tip
NeoTecMaster® - 5 inch in IP 66 housing as a 4-channel system, preconfigured to accept up to 8 incoming 4-20 mA signals, one R232 signal and Modbus signal, can be optionally enabled for 8 channels
Product number:
851096
Our 4- or 8- channel system allows the processing of up to four or eight measurement signals. For this purpose, 4-20 mA/ RS232 as well as Modbus RTU are available as signal inputs. Based on the received data a visualization as well as a trend display takes place. Through modular addition of optional modules (slaves) the realization of popular control concepts is possible.Advantages:Simple operation
Integration of the Testomat® device world
Integration into the existing control cabinet, alternatively we offer our NeoTecMaster® housingModular function range expandable by NeoTec slave modules (measure, control, control)Available as installation variant or structure variant
Contents:
NeoTecMaster® 5 inch - 4 channel systemNeoTec Slave 4-20mA module (inputs: 8x 20mA)NeoTecMaster® IP66 housing for 5" display, light grey with front foilUSB stick for NeoTecMaster® 8GInstallation of NeoTecMaster® in housing incl. parameterisation and cabling of the NeoTecMaster®Universal power supply 24V/6A DC (100-240V AC) (144 Watt)
€2,228.10*
NeoTecMaster® enclosure IP66 for 5" screen, light grey
Product number:
850967
The housing for holding the master or display unit as well as up to 6 function modules incl. optimized cable routing for connecting the individual components & PG glands for connecting external cables (e.g. for Ethernet, sensors and measurement technology). The advantages at a glance: Increase of the protection class to IP 66 and thus protection of the components against damage by environmental conditions. Optimized access for the cabling of the connected components.
Price on request
