Measuring probes / electrodes

The Neomeris Chlorine Dioxide Sensors are specifically designed for disinfection applications in water treatment and swimming pools. There is a choice of three different ppm chlorine dioxide measurement ranges for your measurement. The basis here ist the amperometric measurement.Typical further applications are: Industrial waste waterCooling waterBottle rinsingIrrigation water in agricultureand many others.Signal outputThe measured value is easily and reliably transferred to your control or display system by means of a 4-20mA signal with a scaling of 0-2, 0-5 or 0-10ppm.MaintenanceThe membrane cap mounted on the sensor, as well as the included electrolyte solution, are easily replaceable by the user. This regular maintenance on the sensor helps to extend the service life in the application and to always obtain an optimal measurement result. MountingThe sensor is mounted in the separately available flow cell and, in addition to this, we offer you the flow meter required for this to ensure stable measurement.Scope of delivery: 1 pcs. Chlorine Dioxide 4-20mA Sensor 2 pcs. replacement cap & brand 2 pcs. 30mL refill solution 3 pcs. cathode polishing squares

Our Neomeris Free Chlorine Sensors are specifically designed for disinfection applications in water treatment and swimming pools. There is a choice of four different ppm free chlorine measurement ranges. (Determination of free chlorine by amperometric method)Typical further applications are: Industrial waste waterCooling waterBottle rinsingIrrigation water in agricultureand many others.Signal outputThe measured value is easily and reliably transferred to your control or display system by means of a 4-20mA signal with a scaling of 0-2, 0-5, 0-10 or 0-20ppm.MaintenanceThe membrane cap mounted on the sensor, as well as the included electrolyte solution, are easily replaceable by the user. This regular maintenance on the sensor helps to extend the service life in the application and to always obtain an optimal measurement result. MountingThe sensor is mounted in the separately available flow cell and, in addition to this, we offer you the flow meter required for this to ensure stable measurement.Scope of delivery: 1 pcs. Free Chlorine 4-20mA Sensor 2 pcs. replacement cap & brand 2 pcs. 30mL refill solution 3 pcs. cathode polishing squares

The JUMO "Heavy Duty" pH electrode records the pH value of water and aqueous media. The rugged industrial electrode is designed for the most demanding applications with increased dirt and toxic loads as well as oily media.Advantages:stable and reliable measured values low maintenance and robustextended service lifeSelected version:PT1000 temperature sensorVarioPin electrode head (always required for versions with temperature sensor)PTFE ring diaphragmInsertion length 120mm (standard)Type code (can also be found on your electrode): 201021/10-12-04-18-120/841Features: for industrial applications; also in heavy-duty and hygienic version for demanding processes; integrated temperature sensorApplication range:  process measurement; high temperature applications; suspensions; electroplating; lacquers; waste water; ultrapure water; water; always contaminated media; hygienic and sterile applications; boiler feed water If you require other versions of this electrode, please use our configurator and configure the suitable electrode for you. You can download the JUMO data sheet just below our text. You will find our configurator on page 6 of the data sheet. Please note that the delivery time for freely configured electrodes is 5 to 6 weeks. Ordering details Type 201021 – JUMO tecLine HD pH Pos. Code Description (1) Basic type 1 201021/10 JUMO tecLine HD pH – pH combination electrode with glass shaft, gel electrolyte, double chamber, salt reservoir, up to 13 bar (2) Sensing element 2 12 HT glass (3) Diaphragm 3 04 PTFE ring 3 11 Hole diaphragm (4) Electrical connection 4 18 VarioPin (VP) plug head Pg13.5 4 82 N screw head (S8) Pg13.5, PPS material (5) Insertion length 5 120 120 mm (standard) 5 225 225 mm (6) Type extras 6 000 None 6 841 Integrated Pt1000 6 960 With JUMO digiLine electronics, M12 plug connection, 5-pin (Output: digital interface) 6 961 With JUMO digiLine electronics, M12 plug connection, 8-pin (Output: 4…20 mA and digital programming interface) Order code – Type 201021 Designation (1) (2) (3) (4) (5) (6) Order code – – – – – / Order example 201021/10 12 04 82 120 000 Frequently Asked Questions What does the electrode measure? You use this electrode to measure the pH value of liquids. This means you can determine whether a liquid is acidic, neutral, or alkaline. Is the electrode suitable for heavily contaminated water? Yes, it is specifically designed for dirty and challenging media such as wastewater or paints. This robust industrial electrode is engineered for the most demanding applications involving high levels of contamination and toxins, as well as oily media. Can I use it to measure high temperatures? Yes, it is suitable for applications up to 130°C and remains stable under these conditions. Does this electrode require a lot of maintenance? No, it features a robust design and requires minimal regular maintenance. Is the measurement reliable in the presence of oil or dirt? Yes, it delivers stable readings even in oily and heavily contaminated media. How long does the electrode last in industrial use? Its heavy-duty construction ensures a significantly extended service life.

The Neomeris Chlorine Dioxide Sensors are specifically designed for disinfection applications in water treatment and swimming pools. There is a choice of three different ppm chlorine dioxide measurement ranges for your measurement. The basis here ist the amperometric measurement.Typical further applications are: Industrial waste waterCooling waterBottle rinsingIrrigation water in agricultureand many others.Signal outputThe measured value is easily and reliably transferred to your control or display system by means of a 4-20mA signal with a scaling of 0-2, 0-5 or 0-10ppm.MaintenanceThe membrane cap mounted on the sensor, as well as the included electrolyte solution, are easily replaceable by the user. This regular maintenance on the sensor helps to extend the service life in the application and to always obtain an optimal measurement result. MountingThe sensor is mounted in the separately available flow cell and, in addition to this, we offer you the flow meter required for this to ensure stable measurement.Scope of delivery: 1 pcs. Chlorine Dioxide 4-20mA Sensor 2 pcs. replacement cap & brand 2 pcs. 30mL refill solution 3 pcs. cathode polishing squares

Our Neomeris Free Chlorine Sensors are specifically designed for disinfection applications in water treatment and swimming pools. There is a choice of four different ppm free chlorine measurement ranges. (Determination of free chlorine by amperometric method)Typical further applications are: Industrial waste waterCooling waterBottle rinsingIrrigation water in agricultureand many others.Signal outputThe measured value is easily and reliably transferred to your control or display system by means of a 4-20mA signal with a scaling of 0-2, 0-5, 0-10 or 0-20ppm.MaintenanceThe membrane cap mounted on the sensor, as well as the included electrolyte solution, are easily replaceable by the user. This regular maintenance on the sensor helps to extend the service life in the application and to always obtain an optimal measurement result. MountingThe sensor is mounted in the separately available flow cell and, in addition to this, we offer you the flow meter required for this to ensure stable measurement.Scope of delivery: 1 pcs. Free Chlorine 4-20mA Sensor 2 pcs. replacement cap & brand 2 pcs. 30mL refill solution 3 pcs. cathode polishing squares

Our Neomeris Free Chlorine Sensors are specifically designed for disinfection applications in water treatment and swimming pools. There is a choice of four different ppm free chlorine measurement ranges. (Determination of free chlorine by amperometric method)Typical further applications are: Industrial waste waterCooling waterBottle rinsingIrrigation water in agricultureand many others.Signal outputThe measured value is easily and reliably transferred to your control or display system by means of a 4-20mA signal with a scaling of 0-2, 0-5, 0-10 or 0-20ppm.MaintenanceThe membrane cap mounted on the sensor, as well as the included electrolyte solution, are easily replaceable by the user. This regular maintenance on the sensor helps to extend the service life in the application and to always obtain an optimal measurement result. MountingThe sensor is mounted in the separately available flow cell and, in addition to this, we offer you the flow meter required for this to ensure stable measurement.Scope of delivery: 1 pcs. Free Chlorine 4-20mA Sensor 2 pcs. replacement cap & brand 2 pcs. 30mL refill solution 3 pcs. cathode polishing squares

The Neomeris Chlorine Dioxide Sensors are specifically designed for disinfection applications in water treatment and swimming pools. There is a choice of three different ppm chlorine dioxide measurement ranges for your measurement. The basis here ist the amperometric measurement.Typical further applications are: Industrial waste waterCooling waterBottle rinsingIrrigation water in agricultureand many others.Signal outputThe measured value is easily and reliably transferred to your control or display system by means of a 4-20mA signal with a scaling of 0-2, 0-5 or 0-10ppm.MaintenanceThe membrane cap mounted on the sensor, as well as the included electrolyte solution, are easily replaceable by the user. This regular maintenance on the sensor helps to extend the service life in the application and to always obtain an optimal measurement result. MountingThe sensor is mounted in the separately available flow cell and, in addition to this, we offer you the flow meter required for this to ensure stable measurement.Scope of delivery: 1 pcs. Chlorine Dioxide 4-20mA Sensor 2 pcs. replacement cap & brand 2 pcs. 30mL refill solution 3 pcs. cathode polishing squares

Our Neomeris Free Chlorine Sensors are specifically designed for disinfection applications in water treatment and swimming pools. There is a choice of four different ppm free chlorine measurement ranges. (Determination of free chlorine by amperometric method)Typical further applications are: Industrial waste waterCooling waterBottle rinsingIrrigation water in agricultureand many others.Signal outputThe measured value is easily and reliably transferred to your control or display system by means of a 4-20mA signal with a scaling of 0-2, 0-5, 0-10 or 0-20ppm.MaintenanceThe membrane cap mounted on the sensor, as well as the included electrolyte solution, are easily replaceable by the user. This regular maintenance on the sensor helps to extend the service life in the application and to always obtain an optimal measurement result. MountingThe sensor is mounted in the separately available flow cell and, in addition to this, we offer you the flow meter required for this to ensure stable measurement.Scope of delivery: 1 pcs. Free Chlorine 4-20mA Sensor 2 pcs. replacement cap & brand 2 pcs. 30mL refill solution 3 pcs. cathode polishing squares

- 1 side connected to solenoid valve connector without seal ("Plug and Play", as plug only has to be plugged onto measuring cell)- 1 side labelled cable with wire end ferruleswhite: PT100brown: PT100yellow: Measuring cell SL green: Measuring cellblue: shielding

- 1 side connected to solenoid valve connector without seal ("Plug and Play", as plug only has to be plugged onto measuring cell)- 1 side labelled cable with wire end ferruleswhite: PT100brown: PT100yellow: Measuring cell SL green: Measuring cellblue: shielding

Our flow cell kit is a simple and economical means of mounting pH and ORP electrodes for inline applications. Compatible with all 12 mm electrodes.

Our flow cell kit is a simple and economical means of mounting pH and ORP electrodes for inline applications. Compatible with all 12 mm electrodes.

JUMO 25 Meter Connection Cable JUMO 25 meter connection cable - Ideal for sensors, measuring devices or controllers with 4-wire connection This JUMO connection cable with a length of 25 meters is designed for the electrical connection of suitable sensors or measuring components to the connected evaluation unit. Thanks to the 4-wire design with additional shielding, it is particularly suitable for applications where reliable signal transmission must be ensured even over longer distances. Technical data Length: 25 meters Version: Connection cable Number of wires: 4-wire Additional feature: Shielded Advantages and special features of the JUMO connection cable A major advantage of this cable is its generous length. This is especially practical when a greater distance must be bridged between the sensor and the evaluation unit and a shorter standard cable is not sufficient. The shielded design supports secure and interference-free signal transmission, which can be an important factor in industrial or technical applications. Why should you choose this connection cable? This version is particularly useful when a suitable cable is required for longer installation distances. The combination of 25 meters in length, 4 wires and shielding makes it a practical solution for measuring points where reliable connectivity and clean cable routing are important. Especially in permanently installed applications, this can be a clear advantage. Such a cable is also useful in daily operation when sensors cannot be mounted directly near the evaluation or control technology. It provides greater flexibility in planning the measuring point and can help securely connect suitable components even over longer distances. Frequently Asked Questions What equipment can I use it with? Ideal for sensors, measuring instruments or control units with a 4-wire connection. Is the cable shielded? Yes, the cable has a shield that reduces interference. Is the cable easy to install? Yes, the cable is flexible enough for use in conduits, cable ducts or for open-lay installation. Is the cable robust enough for workshop or industrial use? Yes, it withstands normal wear and tear in protected environments. Is the cable available in other lengths? We currently offer 25-metre and 50-metre versions. How can I correctly identify the individual wires when connecting them? Each of the four wires is colour-coded; the instructions will help you with the connection.

JUMO 50 Meter Connection Cable JUMO 50 meter connection cable - Ideal for sensors, measuring devices or controllers with 4-wire connection This JUMO connection cable with a length of 50 meters is designed for the electrical connection of suitable sensors or measuring components to the connected evaluation unit. Thanks to the 4-wire design with additional shielding, it is particularly suitable for applications where reliable signal transmission must be ensured even over longer distances. Technical data Length: 50 meters Version: Connection cable Number of wires: 4-wire Additional feature: Shielded Advantages and special features of the JUMO connection cable A major advantage of this cable is its length. This is especially practical when a greater distance must be bridged between the sensor and the evaluation unit and shorter standard cables are not sufficient. The shielded design supports interference-free signal transmission, which can be an important factor in industrial and technical applications. Why should you choose this JUMO connection cable? This version is particularly useful when a suitable cable is required for longer installation distances. The combination of 50 meters in length, 4 wires and shielding makes it a practical solution for measuring points where reliable connectivity and clean cable routing are important. Especially in permanently installed applications, this offers greater flexibility during planning. Areas of application Such a cable is also useful in daily operation when sensors cannot be mounted directly near the evaluation or control technology. It provides greater flexibility when positioning the components and helps securely connect suitable devices even over longer distances. Anyone looking for a shielded connection cable with a length of 50 meters for suitable JUMO sensors or measuring components receives a practical solution for long connection paths and reliable signal transmission with this version. Frequently Asked Questions What equipment can I use it with? Ideal for sensors, measuring instruments or control units with a 4-wire connection. Is the cable shielded? Yes, the cable has a shield that reduces interference. Is the cable easy to install? Yes, the cable is flexible enough for use in conduits, cable ducts or for open-lay installation. Is the cable robust enough for workshop or industrial use? Yes, it withstands normal wear and tear in protected environments. Is the cable available in other lengths? We currently offer 25-metre and 50-metre versions. How can I correctly identify the individual wires when connecting them? Each of the four wires is colour-coded; the instructions will help you with the connection.

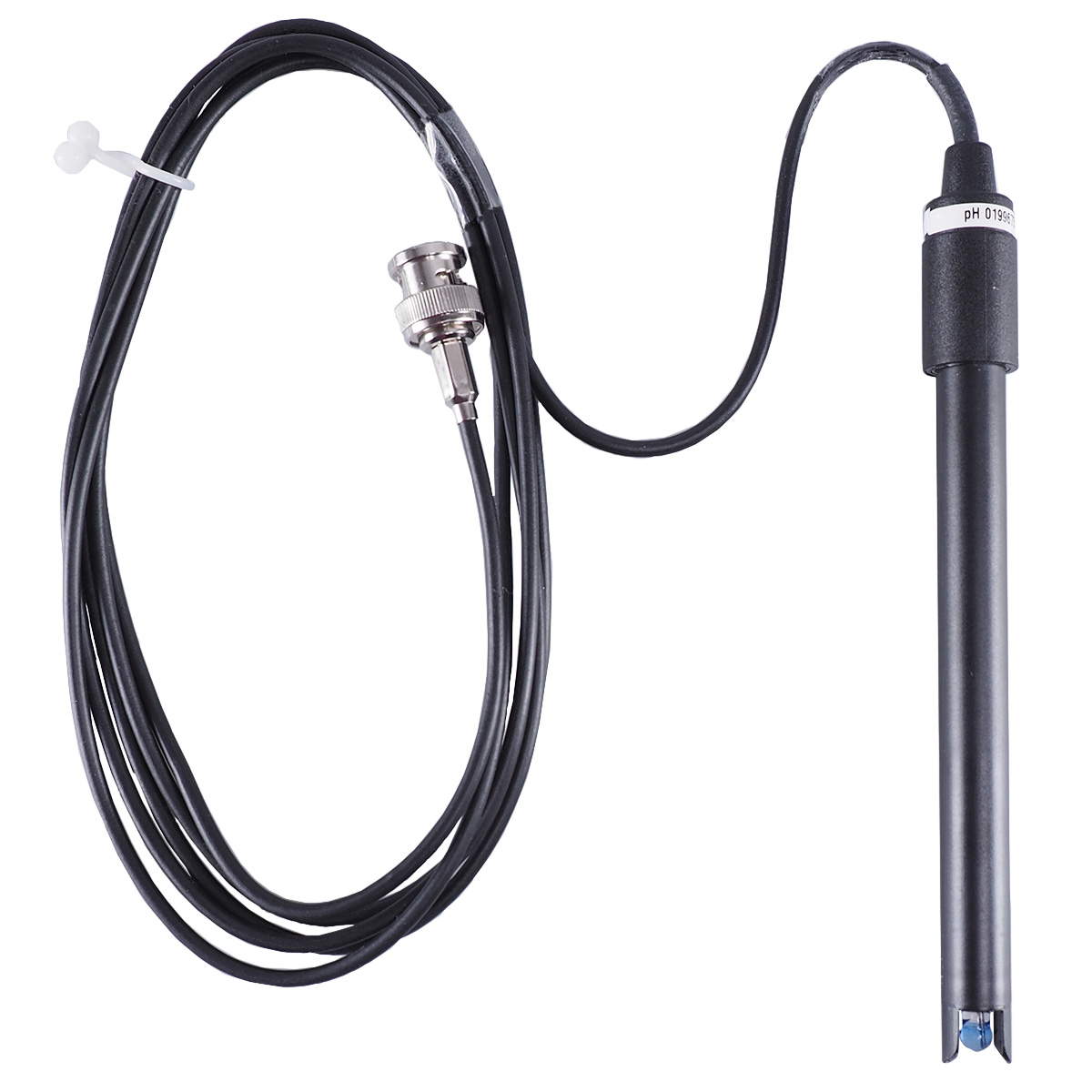

BlackLine pH/ORP electrodes with plastic shaft and fixed protection basket.Selected version: Without temperature sensor (not available for this series, only for Jumo tecLine and tecLine HD series)Screw head S8 Pg13.5 Glass fibre diaphragm Plastic shaft PEI Fitting length 120mm (standard) Type code (can also be found on your electrode): Type 201005/65-18-22-0000-00-120/837 ; part-no. 00419812 Type 201005/65-18-45-2000-76-120/837 ; part-no. 00417300 Type 201005/65-18-65-2000-76-120/837 ; part-no. 00424828 Type 201010/65-22-45-2000-76-120/837 ; part-no. 00417301 Type 201010/65-22-65-2000-76-120/837 ; part-no. 00424950 The electrodes of the JUMO BlackLine series are high-quality measuring sensors with a favorable price/performance ratio.Active part pH The JUMO BlackLine plastic electrodes with fixed protection basket are equipped with the low-resistance JUMO UW glass. This guarantees fast and reliable measurement results. Active part redox The robust platinum tip ensures reliable measurements and is also easy to clean. Reference system The Black Line plastic shaft version PEI uses a polymerised KCl solid electrolyte. This is ideally suited for measurements in aqueous media. For measurements in media with fewer ions or at high flow rates, the electrolyte can be equipped with an optional "salt reservoir" to increase the service life. A polymerized KCl solid electrolyte is also used with this electrode, and the JUMO cartridge discharge system, which has been tried and tested for years, is used as the reference system. Here, the electrolyte remains free of silver ions over the lifetime of the sensor and is therefore less susceptible to electrode poisons. The JUMO BlackLine has a high-quality ceramic diaphragm. The shaft is made of black PPO and has a permanently integrated protective basket. Optionally, the electrodes can be supplied in a storage container (quiver). This is recommended if the sensor is only used sporadically, for refreshing the sensor after longer, intensive use or for longer storage periods. All sensors can be supplied as OEM versions on request. Special versions on request. Areas of applicationDrinking water monitoring and treatmentSwimming poolAquaristics (also seawater aquaristics)Greenhouse technology Lightly polluted industrial, process and waste water Rainwater, pond water and surface water hand-held meters Not recommended forgalvanic water treatmentindustrial process and waste waterultrapure watertherapeutic bathsbiotechnologysterilisation processes

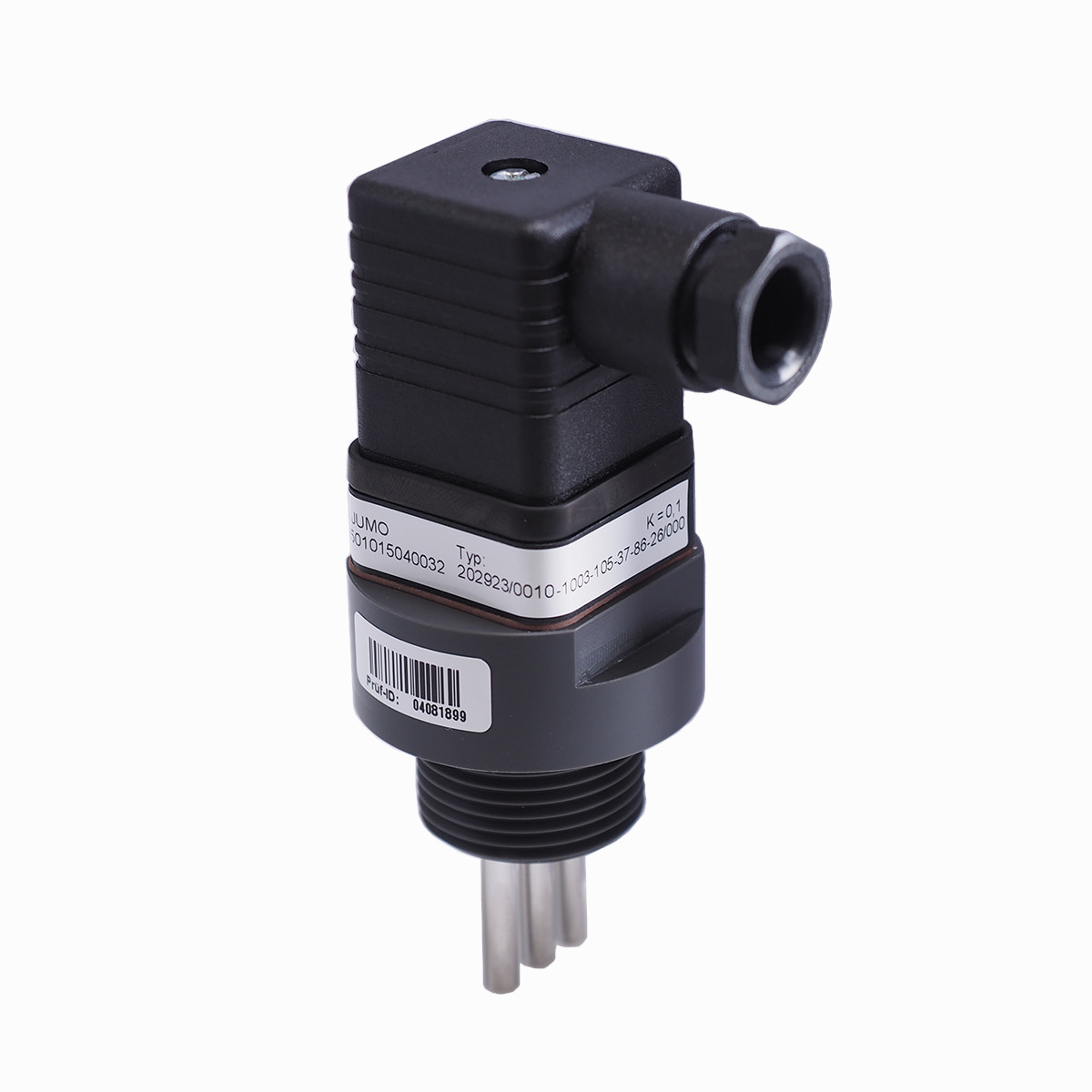

2-electrode principleproven versions for industrial use measuring ranges 0 ... 1 mS/cm (K = 0.1) or 0.01 ... 15 mS/cm (K = 1.0) temperature range up to 55 °C, maximum pressure up to 6 bar at 25 °C JUMO ecoLine CR-PVC conductive 2-electrode conductivity sensorBrief description: Conductivity sensors of the 202923 series are used, for example, in general water technology, cooling and air-conditioning systems, drinking and bathing water, or in industrial rinsing and process water circuits. The body material PVC limits the application to medium temperatures up to 55 °C. Two versions with cell constants K = 0.1 or 1.0 are available. Versions with the common thread sizes G 3/4" or G 1" or a plug-in version are available for installation. The plug-in version is used, for example, with the matching PVC tees in nominal sizes DN 25, 32 and 40 and allows the sensor to be quickly dismantled for cleaning or maintenance. The electrical connection is made either via a detachable device plug or via a fixed cable connection. The overall construction and the parts in contact with the medium are physiologically harmless. The electrode material is stainless steel (K = 0.1) or special graphite (K = 1.0). The optionally integrable temperature sensor allows simultaneous recording of the medium temperature for temperature compensation in downstream measuring amplifiers.Stainless steel variant K = 0.1 The sensor has 3 metallic pin electrodes. The two outer pins are electrically connected and form one pole of the 2-electrode conductivity sensor. The counter electrode is the middle stainless steel pin. This design achieves very high measurement precision with low stray fields. A temperature sensor can be integrated in the middle pin. Graphite variant K = 1.0 For physical reasons, special graphite is used as the electrode material for higher conductance values. The two graphite electrodes are completely integrated in the electrode shaft. The optional temperature sensor is located in a stainless steel sleeve that is immersed in the measured medium. Operating principleThe sensors of the 202923 series are 2-electrode conductivity sensors. An AC voltage is applied to them by the transmitter. The current flowing across the liquid and the electrodes is determined by the conductivity of the liquid

pH/ORP electrodes with glass shaftSelected version: without temperature sensor (not available for this series, only for Jumo tecLine and tecLine HD series) Screw head S8 Pg13.5 Ceramic diaphragm Installation length 120mm (standard) Type code (can also be found on your electrode): Type 201005/51-18-22-0000-00-120/000 ,part no. 00405532 Type 201010/51-22-22-0000-00-120/000 ; part no. 00413906 Type 201005/51-18-60-1000-76-120/000 ; part no. 00459671The electrodes of the JUMO ecoLine series are high-quality measuring sensors with a favourable price/performance ratio.Active part pHJUMO ecoLine electrodes  are equipped with the low-resistance JUMO UW glass. This guarantees fast and reliable measurement results.Active part ORPA robust platinum tip provides reliable measured values and allows easy cleaning of the sensor.Reference systemA polymerised KCl solid electrolyte is used in the glass version. This is ideally suited for measurement in general aqueous media. aqueous media. For measurements in media with lower ion content or at high flow rates, the electrolyte can be the electrolyte can be equipped with an optional "salt reservoir" to increase the service life (if wished, please use our configurator). The JUMO cartridge discharge system, which has been tried and tested for years, is used as the reference system. Here, the electrolyte remains free of silver ions over the service life of the sensor. and therefore less susceptible to electrode poisons.Optionally, the electrodes can be supplied in a storage container (quiver). This is recommended for sporadic use of the sensor, for refreshing the sensor after longer, intensive use or for longer storage periods.All sensors can be supplied as OEM versions on request. Special versions on request.Areas of applicationDrinking water monitoring and treatmentSwimming pool - Aquaristics (also seawater aquaristics)Greenhouse technologyLightly polluted industrial, process and waste waterRainwater, pond water and surface waterhand-held measuring devicesNot recommended forgalvanic water treatmentindustrial process and waste waterultrapure watertherapeutic bathsbiotechnology, sterilisation processes

pH/ORP electrodes with plastic shaft and clip-on protection basketSelected version:Without temperature sensor (not available for this series, only for Jumo tecLine and tecLine HD series)Screw head S8 Pg13.5Glass silk diaphragmPlastic shaft PEIMounting length 120mm (standard)Type code (can also be found on your electrode): Type 201005/53-18-22-0000-00-120/000 ; part no. 00357022 Type 201010/53-22-22-0000-00-120/000 ; Part No. 00357020 The electrodes of the JUMO ecoLine series are high-quality measuring sensors with a favorable price/performance ratio. Active part pHThe JUMO ecoLine plastic electrodes with clip-on protection basket are equipped with the low-resistance JUMO UW glass. This guarantees fast and reliable measurement results. Active part ORPThe robust platinum tip ensures reliable measured values and is also easy to clean. Reference systemA polymerised KCl solid electrolyte is used in the PEI plastic shaft version. This is ideally suited for measurements in general aqueous media. For measurements in media with fewer ions or at high flow rates, the electrolyte can be equipped with an optional "salt reservoir" to increase the service life. The JUMO cartridge discharge system, which has been tried and tested for years, is used as the reference system. Here, the electrolyte remains free of silver ions over the service life of the sensor and is therefore less susceptible to electrode poisons. JUMO ecoLine electrodes in the plastic shaft version made of transparent PEI have a glass-fiber diaphragm. A clip-on protective cage protects the sensor when used with hand-held measuring instruments. Optionally, the electrodes can be supplied in a storage container (quiver). This is recommended if the sensor is only used sporadically, for refreshing the sensor after longer, intensive use or for longer storage periods. All sensors can be supplied as OEM versions on request. Special versions on request.Areas of applicationDrinking water monitoring and treatmentSwimming poolAquaristics (also seawater aquaristics)Greenhouse technologyLightly polluted industrial, process and waste waterRainwater, pond water and surface waterhand-held measuring devicesNot recommended forgalvanic water treatmentindustrial process and waste waterultrapure watertherapeutic bathsbiotechnology, sterilisation processes

JUMO PVC T-piece DN32 incl. union nut, O-ring and adhesive socket JUMO PVC T-piece DN32 incl. union nut, O-ring and adhesive socket This JUMO PVC T-piece DN32 is the suitable accessory for installing a JUMO ecoLine CR-PVC 2-electrode conductivity sensor. It is supplied including a union nut, O-ring and adhesive socket and is available as a DN32 version. The JUMO T-piece DN32 is therefore a suitable accessory for selected ecoLine CR-PVC sensor variants. This version is particularly useful when the conductivity sensor needs to be integrated cleanly and practically into a suitable pipeline system. Thanks to the supplied mounting set, important components are already included, which simplifies installation and supports a maintenance-friendly installation solution. Especially in applications where the sensor must be cleaned regularly or removed for maintenance work, a suitable T-piece is a practical addition. This creates a suitable installation situation for the JUMO ecoLine CR-PVC 2-electrode conductivity sensor. Technical data Version: DN32 Material: PVC Scope of delivery: Union nut, O-ring, adhesive socket Suitable for: JUMO ecoLine CR-PVC 2-electrode conductivity sensor Why is this JUMO T-piece useful for the ecoLine? Anyone looking to integrate a suitable JUMO ecoLine CR-PVC conductivity sensor into a DN32 pipeline receives a practical and suitable installation solution with this T-piece. The complete scope of delivery simplifies installation and makes the accessory especially practical for new installations, retrofits or the replacement of existing components. JUMO order code: A JUMO order code uniquely identifies a specific measuring instrument or component based on its configuration. You will find the exact JUMO order code for your instrument configuration in the relevant data sheet from page 5 onwards. This can be found under ‘Downloads’ for the product. Frequently Asked Questions What do I need this DN32 T-piece for? It is designed to securely install a compatible conductivity sensor into a DN32 pipeline. Is the T-piece compatible with my JUMO ecoLine sensor? Yes, it is specifically designed for the JUMO ecoLine CR-PVC 2-electrode sensor. Is installation complicated or straightforward? Installation is straightforward, as all necessary parts are included. Is the material suitable for industrial use? Yes, the T-piece is made of robust PVC suitable for compatible piping systems. Is everything required for installation included? Yes, the union nut, O-ring, and solvent-weld socket are already included.

Typical areas of applicationindustrial waste water technologyprocess measurements, electroplating, paper industry, beverage industryoily waste watersuspensions, lacquers, media with solid particlesDouble-chamber design in the presence of electrode poisonsFluoride-containing (hydrofluoric acid-containing) media up to 1000 mg/l HFSpecial featuresDirt-repellent PTFE ring diaphragm with highly viscous KCl solution (gel) or perforated or annular gap diaphragm with polymerised solid electrolyte - practically blockage-freeCartridge discharge system with silver ion-free reference electrolytePressure-resistant versions up to 10 bar (50 °C)Temperature range: see order detailsOptional temperature sensors can be integratedOptional salt reservoir to increase service life in media with low conductivity

Typical areas of applicationindustrial and municipal, general water and waste water engineeringProcess measurements, electroplating, final inspections, neutralisation plantsdrinking and well water, boiler feed waterlightly contaminated waste waterDouble-chamber design in the presence of electrode poisons (e.g. sulphides, cyanides)low-temperature applications (-30 ... +30 °C), e.g. measurement in cooling systemsFluoride-containing (hydrofluoric acid) media up to 1000 mg/l HFHigh-alkali applications (reduced alkali error at pH values > pH 12)Special featuresHigh-quality zirconium dioxide diaphragm (glass fibre diaphragm with plastic shaft)Cartridge discharge system with silver ion-free reference electrolytepressure-resistant versions up to 10 bar (50 °C)Temperature range: up to -5 ... +80 °C (90 °C for ORP) or -30 ... +30 °C (with TT version)Temperature sensors can be integrated as an optionoptional salt reserve to increase the service life in media with lower conductivity or in drinking waterJUMO HA glass for continuous measurements in the range up to pH 14ORP versions with platinum or gold tip up to ±2000 mV

Typical areas of applicationProcesses with higher continuous temperatures (up to a maximum of 135 °C)Sterilisation applicationsDouble chamber design in the presence of electrode poisonsfluoride-containing (hydrofluoric acid-containing) media up to 1000 mg HF/lSpecial featuresproven JUMO HT glass (pH high-temperature membrane glass) 0 ... 14 pHJUMO DS membrane glass for sterilization applicationsCartridge discharge system with silver ion-free reference electrolyte (gel)Pressure-resistant versions up to 10 bar (50 °C)Temperature range: 0 ... 135 °C1Temperature sensors can be integrated as an optionORP versions with platinum or gold cap up to ±2000 mV

Thanks to the salt reservoir, this version is particularly suitable for applications with low-ion media or higher flow rates, where an extended electrode service life is beneficial. JUMO tecLine pH electrode with salt reservoir, UW glass, PTFE ring diaphragm, S8 Pg13.5 screw head, 120 mm (Type code: 201020/51-18-04-22-120/837; Part No.: 321035) This JUMO tecLine pH electrode is a good choice when a reliable and durable solution for pH measurement in aqueous media is required. With its salt reservoir design, this version is especially suitable for applications where the electrode is used under more demanding conditions and where maximum service life is required. Users looking for more than a standard pH electrode will benefit from a design focused on stable and long-term operation. Advantages and special features A key advantage of this electrode lies in the combination of UW glass, PTFE ring diaphragm, and salt reservoir. The UW glass supports reliable pH measurement, while the PTFE ring diaphragm provides a robust solution for more demanding measurement conditions. The salt reservoir is particularly beneficial in applications where higher requirements are placed on electrode lifetime. This makes the design especially attractive for users who value a robust and long-lasting electrode for regular measurement tasks. Technical information With the S8 Pg13.5 screw head and a 120 mm insertion length, the electrode is suitable for many common installation situations. The glass shaft design makes it a classic solution for precise pH measurements in appropriate applications. Its well-balanced construction allows easy integration into existing measurement setups. Why choose this electrode? Because it is particularly suitable when a pH electrode is not only required to measure reliably but also to maintain long-term stability and durability in continuous operation. The salt reservoir makes this electrode especially attractive for conditions where extended service life is important. Combined with the PTFE ring diaphragm, it results in a robust and high-quality solution for users requiring dependable routine measurements. Applications The electrode is used for pH measurement in aqueous media. It is suitable wherever precise pH monitoring is required and where a salt reservoir provides additional benefit. This makes it a strong choice for applications where reliability, service life, and clean integration into the measurement point are important. Water treatment Drinking water monitoring Swimming pool technology Process water Surface water General laboratory and industrial measurement tasks JUMO order code: A JUMO order code uniquely identifies a specific measuring instrument or component based on its configuration. You will find the exact JUMO order code for your instrument configuration in the relevant data sheet from page 5 onwards. This can be found under ‘Downloads’ for the product.

General descriptionThe electrodes are characterised by high mechanical and chemical resistance. Due to the stable PVDF body, there is practically no risk of the sensor breaking. The electrolyte of these combination electrodes guarantees a stable measured value, even in critical media containing sulphite.A Pt1000 temperature sensor is integrated. Depending on the application, the electrodes can be manufactured as pH or redox electrodes. An open annular gap diaphragm is used as the diaphragm.Areas of applicationChemical industryWaste water treatmentSewage treatmentPaper industry
