0-2 ppm Free Chlorine Select Sensor with 4- 20 mA output

Product number: 890849
0-2 ppm Free Chlorine Select Sensor with 4- 20 mA output
0-2 ppm Free Chlorine Select Sensor with 4- 20 mA output
0-2 ppm Free Chlorine Select Sensor with 4- 20 mA output
0-2 ppm Free Chlorine Select Sensor with 4- 20 mA output
0-2 ppm Free Chlorine Select Sensor with 4- 20 mA output
0-2 ppm Free Chlorine Select Sensor with 4- 20 mA output
0-2 ppm Free Chlorine Select Sensor with 4- 20 mA output
0-2 ppm Free Chlorine Select Sensor with 4- 20 mA output
0-2 ppm Free Chlorine Select Sensor with 4- 20 mA output
0-2 ppm Free Chlorine Select Sensor with 4- 20 mA output
0-2 ppm Free Chlorine Select Sensor with 4- 20 mA output
0-2 ppm Free Chlorine Select Sensor with 4- 20 mA output

€1,373.25*

Please log in to receive your conditions.

Prices excl. VAT plus shipping costs.
Show gross prices
(incl. VAT)

Available in 49 days, delivery time 1-2 days

measuring range

Product number: 890849
GTIN: 4260682384034
Measurement parameters: Free Chlorine
Measuring range: 0-2 | 0-5 | 0-10 | 0-20 PPM
Offer as PDF
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.
Product information "0-2 ppm Free Chlorine Select Sensor with 4- 20 mA output"
Our Neomeris Free Chlorine Sensors are specifically designed for disinfection applications in water treatment and swimming pools. There is a choice of four different ppm free chlorine measurement ranges. (Determination of free chlorine by amperometric method)

Typical further applications are:
  • Industrial waste water
  • Cooling water
  • Bottle rinsing
  • Irrigation water in agriculture
and many others.

Signal output
The measured value is easily and reliably transferred to your control or display system by means of a 4-20mA signal with a scaling of 0-2, 0-5, 0-10 or 0-20ppm.
Maintenance
The membrane cap mounted on the sensor, as well as the included electrolyte solution, are easily replaceable by the user. This regular maintenance on the sensor helps to extend the service life in the application and to always obtain an optimal measurement result.

Mounting

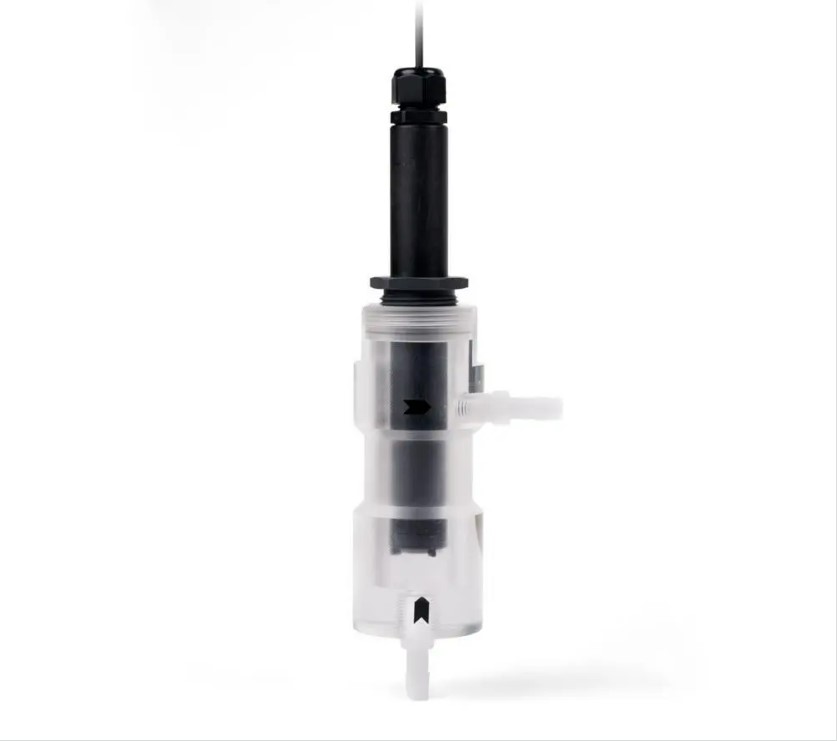

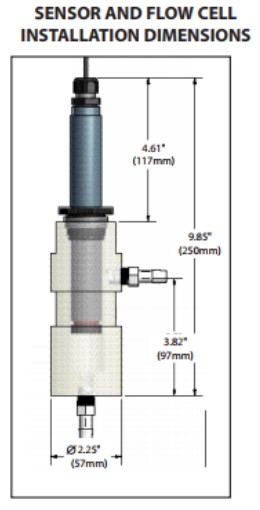

The sensor is mounted in the separately available flow cell and, in addition to this, we offer you the flow meter required for this to ensure stable measurement.

Scope of delivery:
  • 1 pcs. Free Chlorine 4-20mA Sensor
  • 2 pcs. replacement cap & brand
  • 2 pcs. 30mL refill solution
  • 3 pcs. cathode polishing squares

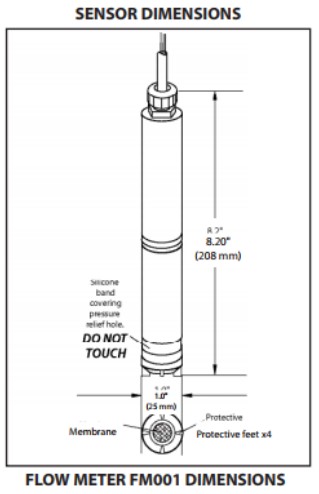

Dimensions

Weight

Other attributes

Country of origin US
Customs tariff number 90278930
Technical data

Free Chlorine Measuring Range: 0-2, 0-5, 0-10 or 0-20 ppm
pH Range: 5.5 - 8.5
Body Material: PVC
Membrane Cap Material: PVC housing, Proprietary Membrane
Temperature Range: 0 - 45 Degrees C
Maximum Pressure: 1 bar (bypass installation, open sample water outlet)
Temperatur Compensation: integrated
Cable Length: 3 meter (10 feet), 2 conductors, tinned leads
Process Connection: flow cell 1/4 inch FNPT threads
Output: 4-20mA
Flow Range: Min 0.2 gpm (45 l/hr), Max 0.6 gpm (135 l/hr)
Supply Voltage: 12-24V DC, 250mA minimum
Cross Sensitivity: Chlorine dioxide, Ozone, bromine, iodine

Recommended accessories

Select Durchflusszelle für Freies Chlor und Chlordioxid Sensoren
Select Durchflusszelle für Freies Chlor und Chlordioxid Sensoren
Product number: 890854

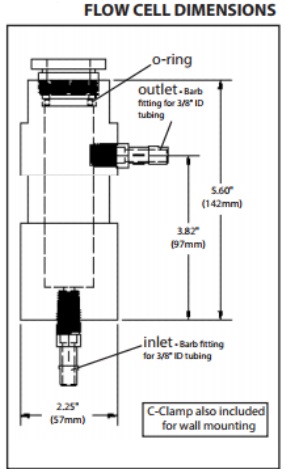

Our Neomeris Select flow cell for free chlorine and chlorine dioxide enables highly accurate measurements by preventing the formation of air bubbles at the sensor membrane while maintaining laminar flow across the membrane.Our flow cell is fully compatible with free chlorine and chlorine dioxide sensors.  Allows for highly accurate measurements: Maintains laminar flow through the system and prevents air bubbles from forming, increasing measurement accuracy.Easy sensor installation: Mount your free chlorine or chlorine dioxide sensor in the flow cell in less than 5 minutes.

€435.25*
Details
Maintenance kit for free chlorine sensor
Maintenance kit for free chlorine sensor
Product number: 880670
Maintenance kit for Neomeris Select free chlorine sensorEnsure proper operation and high measurement accuracy with our free chlorine sensor service kit and also extend the life of the sensor.Content:1x Replacement membrane cap1x Replacement pressure relief strap2x 30-mL bottles of electrolyte refill solution2x 10-mL syringes3x Polishing squares

€220.00*
Details
Maintenance kit for chlorine dioxide sensor
Maintenance kit for chlorine dioxide sensor
Product number: 880671
Maintenance kit for Neomeris Select chlorine dioxide sensorEnsure proper operation and high measurement accuracy with our chlorine dioxide sensor service kit and also extend the life of the sensor.Content:1x Replacement membrane cap1x Replacement pressure relief strap2x 30-mL bottles of electrolyte refill solution2x 10-mL syringes3x Polishing squares

€220.00*
Details
