The realization of technical measurement, control and regulation functions as well as the associated sensory recording of the individual relevant parameters requires the use of high-precision sensors, which are specially adapted to the application and the parameter to be measured.
In the field of water treatment, these include in particular the parameters conductivity, pH value, redox potential, free oxygen, turbidity, UV transmission (monitoring of UV systems), TOC value and other chemical and physical parameters specific to the application.
The Neomeris Chlorine Dioxide Sensors are specifically designed for disinfection applications in water treatment and swimming pools. There is a choice of three different ppm chlorine dioxide measurement ranges for your measurement. The basis here ist the amperometric measurement.Typical further applications are: Industrial waste waterCooling waterBottle rinsingIrrigation water in agricultureand many others.Signal outputThe measured value is easily and reliably transferred to your control or display system by means of a 4-20mA signal with a scaling of 0-2, 0-5 or 0-10ppm.MaintenanceThe membrane cap mounted on the sensor, as well as the included electrolyte solution, are easily replaceable by the user. This regular maintenance on the sensor helps to extend the service life in the application and to always obtain an optimal measurement result. MountingThe sensor is mounted in the separately available flow cell and, in addition to this, we offer you the flow meter required for this to ensure stable measurement.Scope of delivery: 1 pcs. Chlorine Dioxide 4-20mA Sensor 2 pcs. replacement cap & brand 2 pcs. 30mL refill solution 3 pcs. cathode polishing squares
Our Neomeris Free Chlorine Sensors are specifically designed for disinfection applications in water treatment and swimming pools. There is a choice of four different ppm free chlorine measurement ranges. (Determination of free chlorine by amperometric method)Typical further applications are: Industrial waste waterCooling waterBottle rinsingIrrigation water in agricultureand many others.Signal outputThe measured value is easily and reliably transferred to your control or display system by means of a 4-20mA signal with a scaling of 0-2, 0-5, 0-10 or 0-20ppm.MaintenanceThe membrane cap mounted on the sensor, as well as the included electrolyte solution, are easily replaceable by the user. This regular maintenance on the sensor helps to extend the service life in the application and to always obtain an optimal measurement result. MountingThe sensor is mounted in the separately available flow cell and, in addition to this, we offer you the flow meter required for this to ensure stable measurement.Scope of delivery: 1 pcs. Free Chlorine 4-20mA Sensor 2 pcs. replacement cap & brand 2 pcs. 30mL refill solution 3 pcs. cathode polishing squares
The Neomeris Chlorine Dioxide Sensors are specifically designed for disinfection applications in water treatment and swimming pools. There is a choice of three different ppm chlorine dioxide measurement ranges for your measurement. The basis here ist the amperometric measurement.Typical further applications are: Industrial waste waterCooling waterBottle rinsingIrrigation water in agricultureand many others.Signal outputThe measured value is easily and reliably transferred to your control or display system by means of a 4-20mA signal with a scaling of 0-2, 0-5 or 0-10ppm.MaintenanceThe membrane cap mounted on the sensor, as well as the included electrolyte solution, are easily replaceable by the user. This regular maintenance on the sensor helps to extend the service life in the application and to always obtain an optimal measurement result. MountingThe sensor is mounted in the separately available flow cell and, in addition to this, we offer you the flow meter required for this to ensure stable measurement.Scope of delivery: 1 pcs. Chlorine Dioxide 4-20mA Sensor 2 pcs. replacement cap & brand 2 pcs. 30mL refill solution 3 pcs. cathode polishing squares
Our Neomeris Free Chlorine Sensors are specifically designed for disinfection applications in water treatment and swimming pools. There is a choice of four different ppm free chlorine measurement ranges. (Determination of free chlorine by amperometric method)Typical further applications are: Industrial waste waterCooling waterBottle rinsingIrrigation water in agricultureand many others.Signal outputThe measured value is easily and reliably transferred to your control or display system by means of a 4-20mA signal with a scaling of 0-2, 0-5, 0-10 or 0-20ppm.MaintenanceThe membrane cap mounted on the sensor, as well as the included electrolyte solution, are easily replaceable by the user. This regular maintenance on the sensor helps to extend the service life in the application and to always obtain an optimal measurement result. MountingThe sensor is mounted in the separately available flow cell and, in addition to this, we offer you the flow meter required for this to ensure stable measurement.Scope of delivery: 1 pcs. Free Chlorine 4-20mA Sensor 2 pcs. replacement cap & brand 2 pcs. 30mL refill solution 3 pcs. cathode polishing squares
Our Neomeris Free Chlorine Sensors are specifically designed for disinfection applications in water treatment and swimming pools. There is a choice of four different ppm free chlorine measurement ranges. (Determination of free chlorine by amperometric method)Typical further applications are: Industrial waste waterCooling waterBottle rinsingIrrigation water in agricultureand many others.Signal outputThe measured value is easily and reliably transferred to your control or display system by means of a 4-20mA signal with a scaling of 0-2, 0-5, 0-10 or 0-20ppm.MaintenanceThe membrane cap mounted on the sensor, as well as the included electrolyte solution, are easily replaceable by the user. This regular maintenance on the sensor helps to extend the service life in the application and to always obtain an optimal measurement result. MountingThe sensor is mounted in the separately available flow cell and, in addition to this, we offer you the flow meter required for this to ensure stable measurement.Scope of delivery: 1 pcs. Free Chlorine 4-20mA Sensor 2 pcs. replacement cap & brand 2 pcs. 30mL refill solution 3 pcs. cathode polishing squares
The Neomeris Chlorine Dioxide Sensors are specifically designed for disinfection applications in water treatment and swimming pools. There is a choice of three different ppm chlorine dioxide measurement ranges for your measurement. The basis here ist the amperometric measurement.Typical further applications are: Industrial waste waterCooling waterBottle rinsingIrrigation water in agricultureand many others.Signal outputThe measured value is easily and reliably transferred to your control or display system by means of a 4-20mA signal with a scaling of 0-2, 0-5 or 0-10ppm.MaintenanceThe membrane cap mounted on the sensor, as well as the included electrolyte solution, are easily replaceable by the user. This regular maintenance on the sensor helps to extend the service life in the application and to always obtain an optimal measurement result. MountingThe sensor is mounted in the separately available flow cell and, in addition to this, we offer you the flow meter required for this to ensure stable measurement.Scope of delivery: 1 pcs. Chlorine Dioxide 4-20mA Sensor 2 pcs. replacement cap & brand 2 pcs. 30mL refill solution 3 pcs. cathode polishing squares
Our Neomeris Free Chlorine Sensors are specifically designed for disinfection applications in water treatment and swimming pools. There is a choice of four different ppm free chlorine measurement ranges. (Determination of free chlorine by amperometric method)Typical further applications are: Industrial waste waterCooling waterBottle rinsingIrrigation water in agricultureand many others.Signal outputThe measured value is easily and reliably transferred to your control or display system by means of a 4-20mA signal with a scaling of 0-2, 0-5, 0-10 or 0-20ppm.MaintenanceThe membrane cap mounted on the sensor, as well as the included electrolyte solution, are easily replaceable by the user. This regular maintenance on the sensor helps to extend the service life in the application and to always obtain an optimal measurement result. MountingThe sensor is mounted in the separately available flow cell and, in addition to this, we offer you the flow meter required for this to ensure stable measurement.Scope of delivery: 1 pcs. Free Chlorine 4-20mA Sensor 2 pcs. replacement cap & brand 2 pcs. 30mL refill solution 3 pcs. cathode polishing squares
Cooler consists of Titanium steel 1.4571 for automatic sampling to 120°C hot water. Max.water pressure/hot water: 16 bar Max.water pressure/cold water: 8 bar Connections: Cold water inlet: ½ Cold water outlet (canal): ½ Hot water (in- and outlet): 8 mm Dimensions: 546 x 128 mm You can find a detailed description of the cooler in the technical data sheet for download on this page.

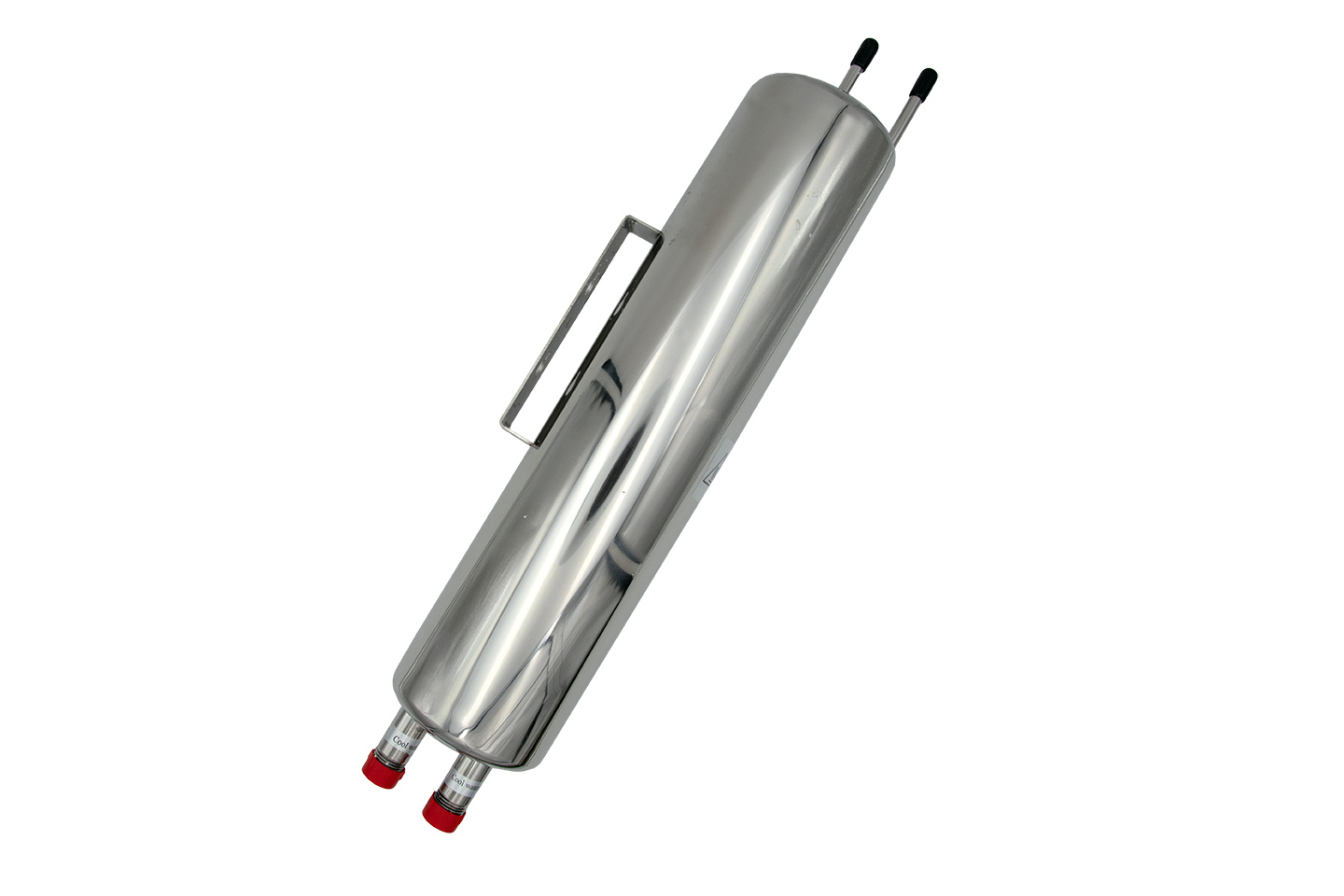

Cooler made of titanium stainless steel 1.4571 for the automatic extraction of water samples up to 200°C hot water. Technical data:Max. hot water pressure: 40 barMax. Cold water pressure: 8 barMax. Max. hot water temperature: 0-200°C Connections:Cooling water (inlet and outlet): ½ ”Hot water (inlet and outlet): 8 mm Dimensions:546 x 128 mm Weight:2.3 kg Length of the cooling coil:5.1 metri Material:Titanium stainless steel AISI316Ti4, EN 1.4571(Wall bracket: AISI316L, EN 1.4404) Performance (example for analyzers):< 40°C with cooling water at a temperature of <25°C at a water flow of the sample water of approx. 23 L/h Classification of the liquids: Class 2 - non-hazardous liquids Classification of the coolant Dir 2014/68 UE PED: Class A

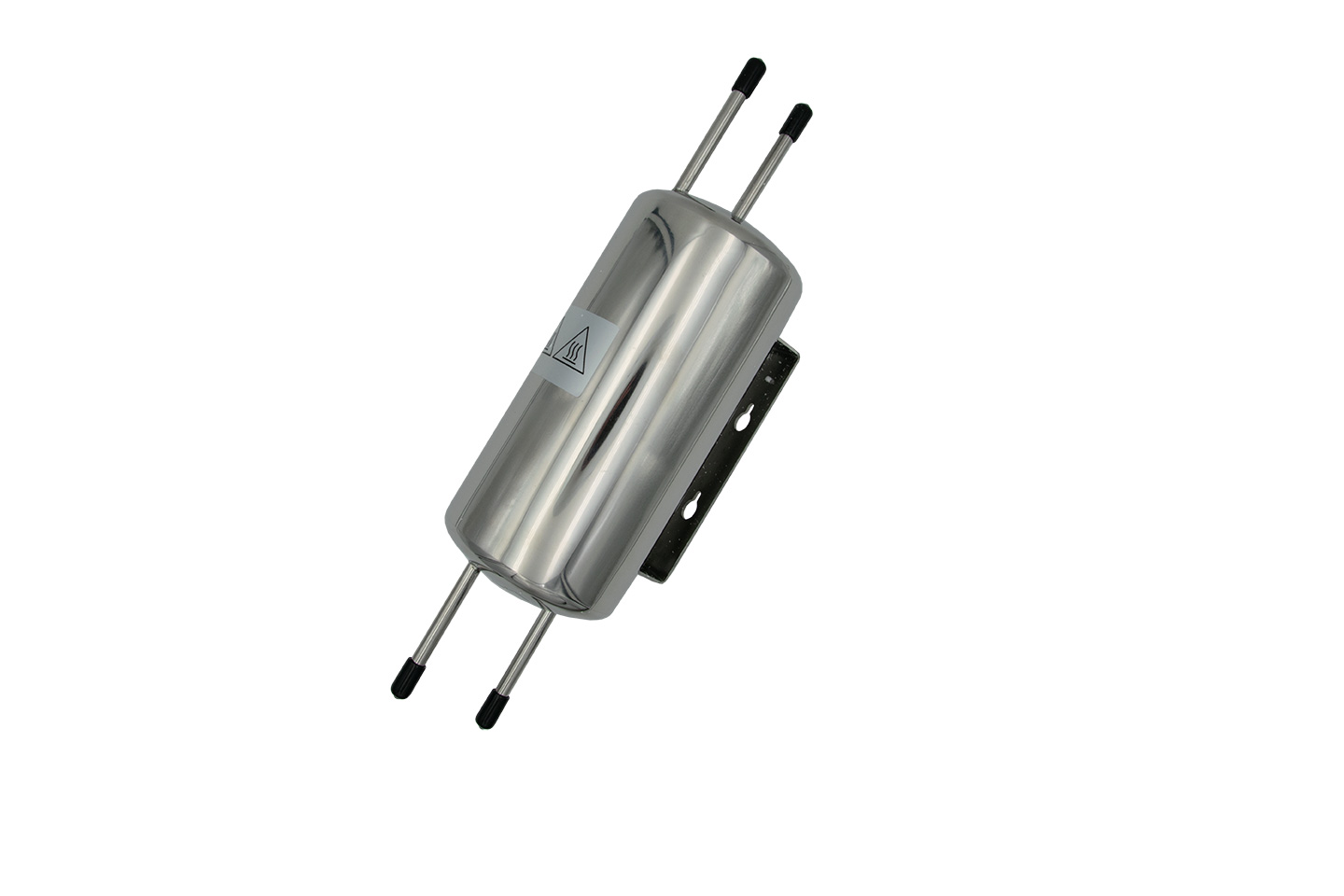

Cooler consists of Titanium steel 1.4571 for automatic sampling to 80°C hot water. Max.water pressure/hot water: 16 bar Max.water pressure/cold water: 8 bar Connections: Cold water inlet: ½ Cold water outlet (canal): ½ Hot water (in- and outlet): 8 mm Dimensions: 598 x 335 mm You can find a detailed description of the cooler in the technical data sheet for download on this page.

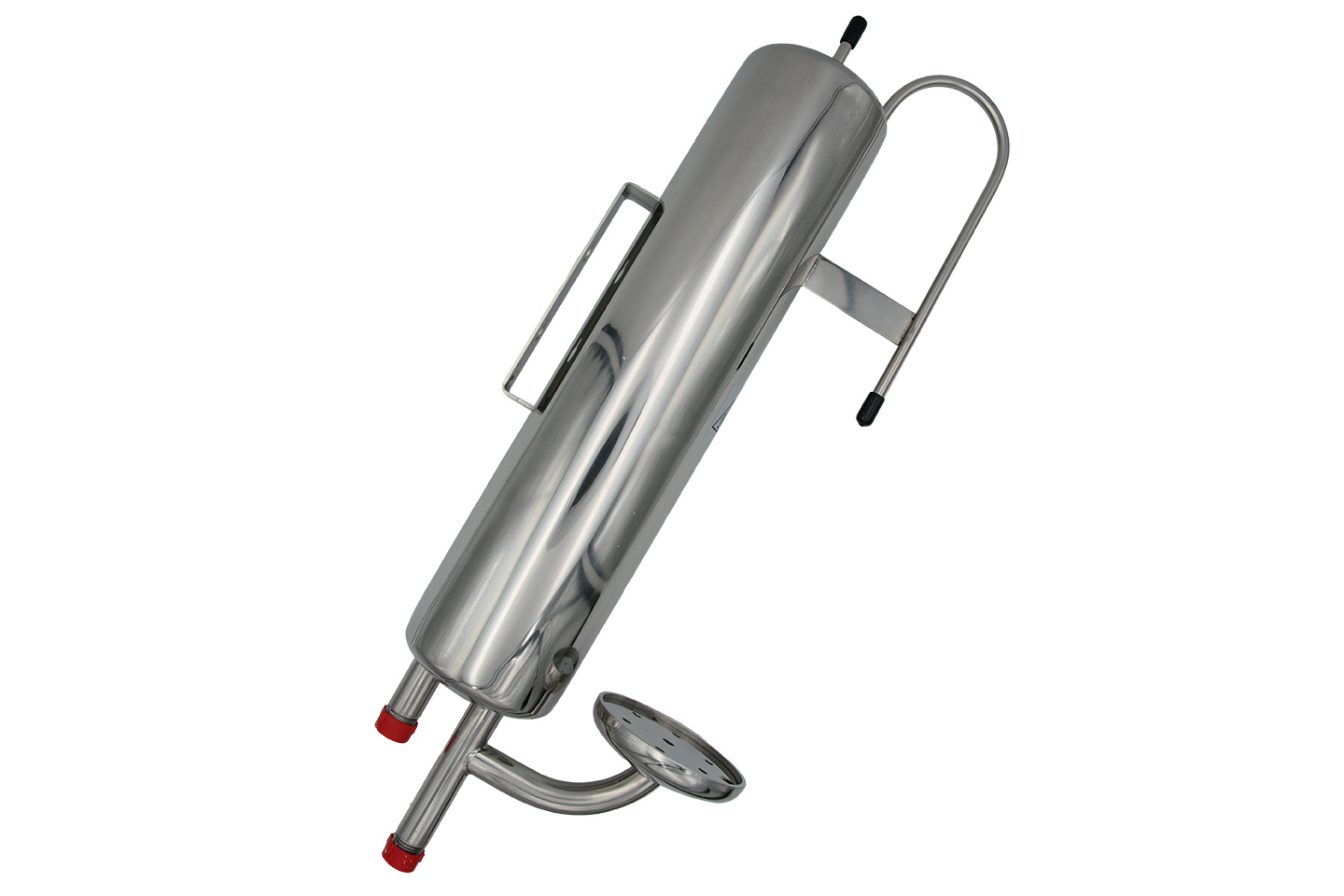

Cooler consists of Titanium steel 1.4571 for manual sampling to 120°C hot water. Max.water pressure/hot water: 16 bar Max.water pressure/cold water: 8 bar Connections: Cold water inlet: ½ Cold water outlet (canal): ½ Hot water (in- and outlet): 8 mm Dimensions: 598 x 335 mm You can find a detailed description of the cooler in the technical data sheet for download on this page.

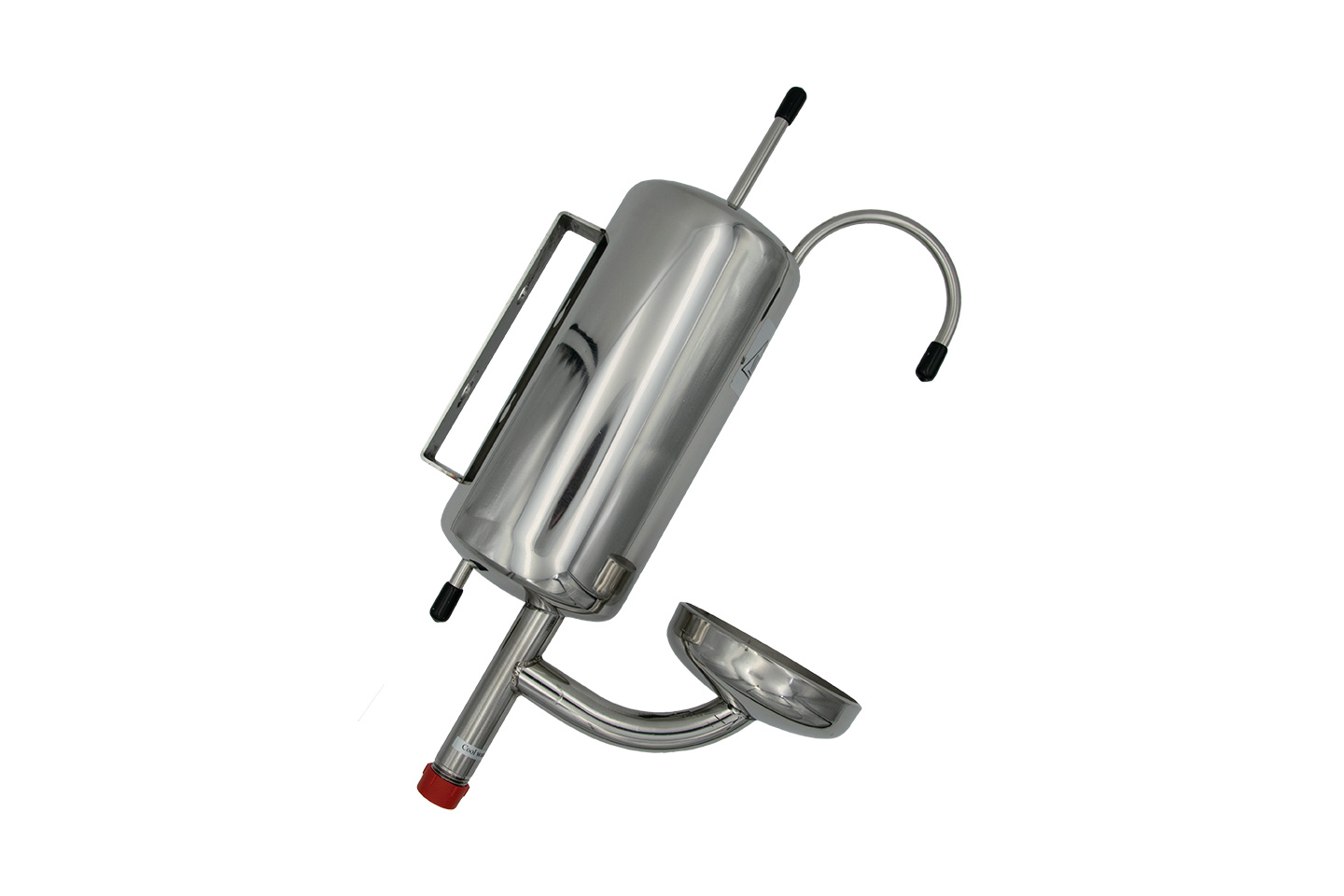

Cooler consists of Titanium steel 1.4571 for for manual sampling to 80°C hot water. Max.water pressure/hot water: 16 bar Max.water pressure/cold water: 8 bar Connections: Cold water inlet: 8 mm Cold water outlet: ½ Hot water (in- and outlet): 8 mm Dimensions: 413 x 335 mm You can find a detailed description of the cooler in the technical data sheet for download on this page.
Our flow cell kit is a simple and economical means of mounting pH and ORP electrodes for inline applications. Compatible with all 12 mm electrodes.
Our flow cell kit is a simple and economical means of mounting pH and ORP electrodes for inline applications. Compatible with all 12 mm electrodes.
Typical areas of applicationindustrial waste water technologyprocess measurements, electroplating, paper industry, beverage industryoily waste watersuspensions, lacquers, media with solid particlesDouble-chamber design in the presence of electrode poisonsFluoride-containing (hydrofluoric acid-containing) media up to 1000 mg/l HFSpecial featuresDirt-repellent PTFE ring diaphragm with highly viscous KCl solution (gel) or perforated or annular gap diaphragm with polymerised solid electrolyte - practically blockage-freeCartridge discharge system with silver ion-free reference electrolytePressure-resistant versions up to 10 bar (50 °C)Temperature range: see order detailsOptional temperature sensors can be integratedOptional salt reservoir to increase service life in media with low conductivitySelected version:Basic type: Glass shaftActive part: Platinum capDiaphragm: PTFE ringElectrical connection to electrode: screw head Pg13.5 (S8)Insertion length: 120mm (standard)Extra codes: Salt reserveOrder code: 201025/51-22-04-22-120/837
Maintenance kit for Neomeris Select chlorine dioxide sensorEnsure proper operation and high measurement accuracy with our chlorine dioxide sensor service kit and also extend the life of the sensor.Content:1x Replacement membrane cap1x Replacement pressure relief strap2x 30-mL bottles of electrolyte refill solution2x 10-mL syringes3x Polishing squares

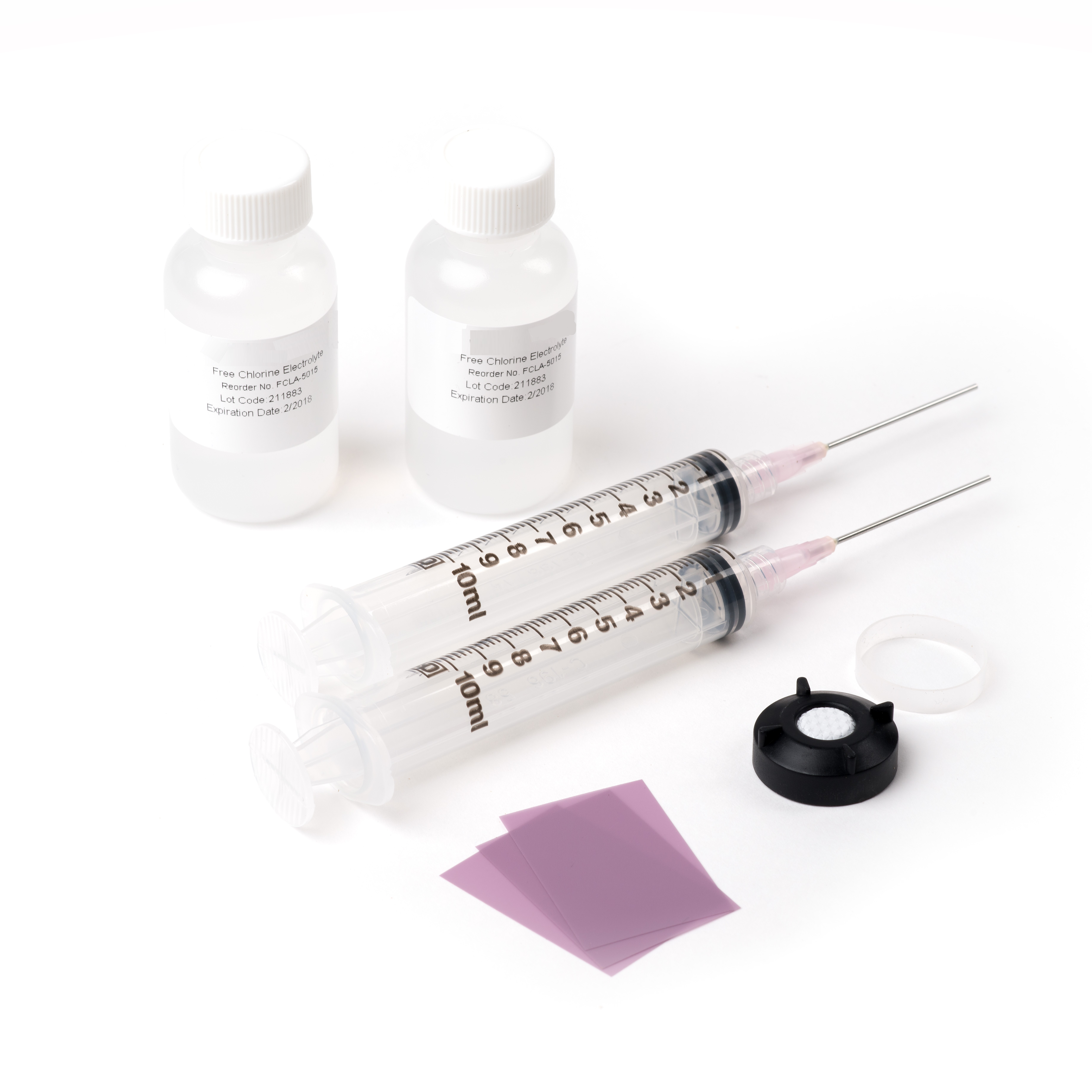

Maintenance kit for Neomeris Select free chlorine sensorEnsure proper operation and high measurement accuracy with our free chlorine sensor service kit and also extend the life of the sensor.Content:1x Replacement membrane cap1x Replacement pressure relief strap2x 30-mL bottles of electrolyte refill solution2x 10-mL syringes3x Polishing squares
The calibration box is used for the calibration of Modbus sensors. The wires from the sensors are connected to the terminal block on the front of the box and the Box is connected to a computer via a USB interface.Advantages:Simple and safe calibration of the Modbus sensors
NeoTec Select Optical Oxygen Sensor with Modbus OutputDurable and reliableStainless steel SS316- housing option for fresh waterTitanium- housing option for salt waterOptical technology allows maintenance-free use for up to 2 years Save time during set-upNo calibration required Plug and play Digital communication Open protocol Modbus RS485 signal
NeoTec Select Optical Oxygen Sensor with Modbus OutputDurable and reliableStainless steel SS316- housing option for fresh waterTitanium- housing option for salt waterOptical technology allows maintenance-free use for up to 2 years Save time during set-upNo calibration required Plug and play Digital communication Open protocol Modbus RS485 signal
The conductivity measuring package consists of a 3 meter connection cable, a 4-20mA head transmitter, and the conductivity sensor. Due to the design of the sensor assembly, only the sensor needs to be replaced, when it should be worn out . All other components of this system can be used continuously. For an optimal process integration the NeoTec sensor is delivered with a fitting T-piece. Advantages: preconfigured for NeoTecMaster® modular design industry standard resource friendly
The conductivity measuring package consists of a 3 meter connection cable, a 4-20mA head transmitter, and the conductivity sensor. Due to the design of the sensor assembly, only the sensor needs to be replaced, when it should be worn out . All other components of this system can be used continuously. For an optimal process integration the NeoTec sensor is delivered with a fitting T-piece. Advantages: preconfigured for NeoTecMaster® modular design industry standard resource friendly
The conductivity measuring package consists of a 3 meter connection cable, a Modbus head transmitter, and the conductivity sensor. Due to the design of the sensor assembly, only the sensor needs to be replaced, when it should be worn out . All other components of this system can be used continuously. For an optimal process integration the NeoTec sensor is delivered with a fitting T-piece. Advantages: preconfigured for NeoTecMaster® modular design industry standard resource friendly
The conductivity sensor consists of a 3 meter connection cable, a Modbus head transmitter, and the conductivity sensor. Due to the design of the sensor assembly, only the sensor needs to be replaced. All other components of this system can be used continuously. For an optimal process integration the NeoTec sensor is delivered with a fitting T-piece. Advantages:Preconfigured for NeoTecMaster® Modular design Industry standard conserves resources
