UV Systems for Swimming Pools
UV systems for swimming pools use UV-C light to reliably inactivate bacteria, viruses, algae, and other microorganisms. This chemical-free disinfection method reduces the use of chlorine or other chemicals, minimizes odors and skin irritation, and ensures crystal-clear water. The systems operate continuously, maintaining consistently high water quality regardless of visitor numbers or water temperature fluctuations.
Typical Applications:
- Public and private swimming pools
- Wellness and spa facilities
- Hotels and recreational facilities
- Water attractions and aquaparks

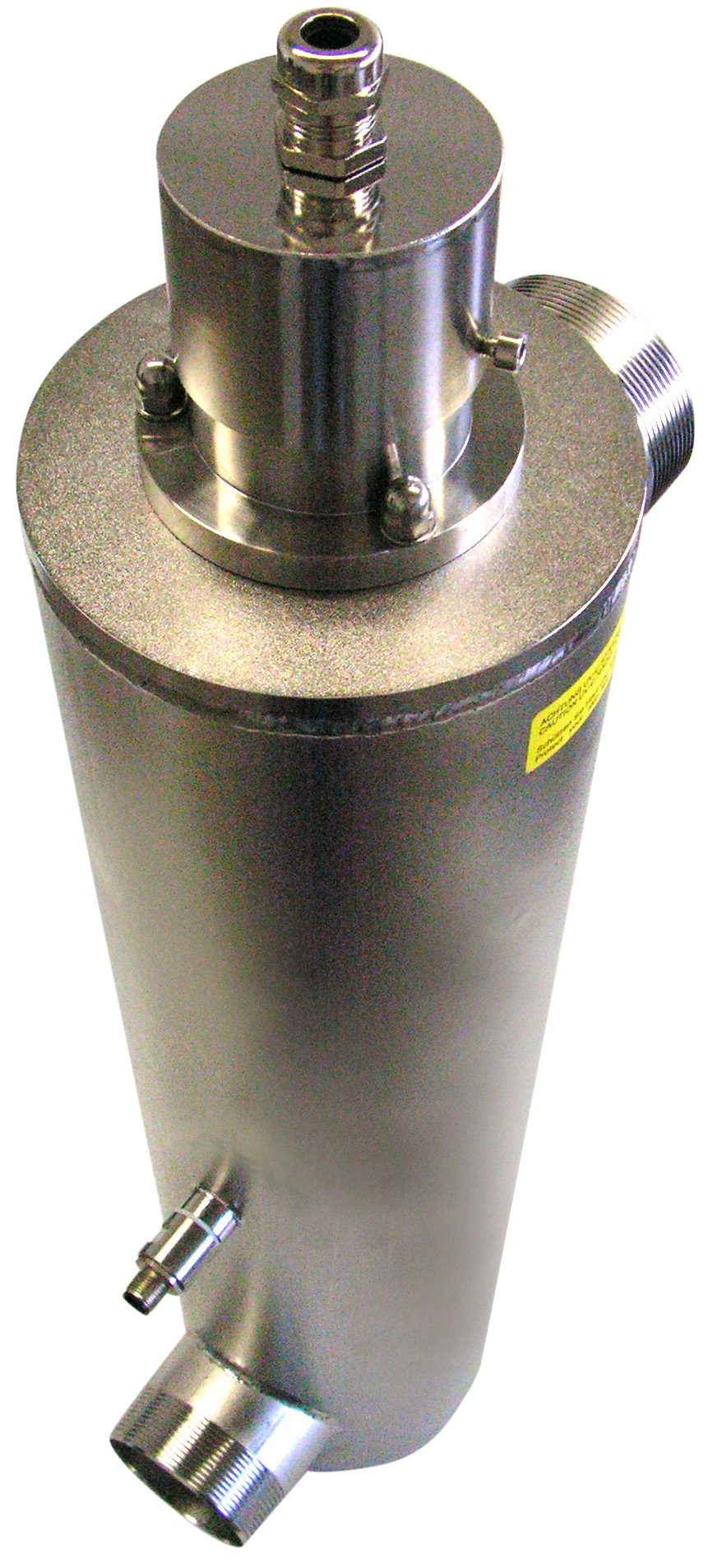

UVprofessional pool 15 m³/h low-pressure system
Product number:
891170
Flow rate at UV transmission 98% / 1cm and 250 J/m2 as well as 400 J/m2 UV exposure:
15 m³/h at 250 J/m²; 10 m³/h at 400 J/m² (pool capacity 50m3)
The cost-effective UV-C disinfection is excellently suited for swimming pool water, swimming pool attractions, fountains and pond systems. UV treatment does not introduce any unwanted by-products into the water that could lead to possible side effects such as skin or eye irritation. UV treatment provides supplementary protection against chlorine-resistant organisms and reduction of algae formation in swimming and garden ponds without endangering the animal and plant population of the pond facilities. UV disinfection in swimming pool attractions and fountains prevents bacteria from aerosols from being inhaled.
Stainless steel reactor (1.4571 DIN EN 10217-7, external electropolished) with conical external threads according to DIN 10241:2000, quartz immersion tube and UV low-pressure lamp, electronic ballast in plastic housing with on/off switch, operating hours counter and plug (230 VAC), without UV monitoring.
Pool NS 15: (art. no. 891170)
Pool capacity: - 50m³
Flow rate: 13 m³/h at 250 J/m²; 5 m³/h at 400 J/m²
UV lamp: 1x 80 Watt; connection: 2" ET
Pool NS 25: (art. no. 891171)
Pool capacity: - 75m³
Flow rate: 25 m³/h at 250 J/m²; 10m³/h at 400 J/m²
UV lamp: 1x 125 Watt; connection: 2" ET
Optional:
Version with UV monitoring
Version with remote control input
Version with time relay output 230 VAC, 6A
Price on request
UVprofessional pool 25 m³/h low-pressure system
Product number:
891171
Flow rate at UV transmission 98% / 1cm and 250 J/m2 as well as 400 J/m2 UV exposure:
25 m³/h at 250 J/m²; 10 m³/h at 400 J/m² (pool capacity 75m3)
The cost-effective UV-C disinfection is excellently suited for swimming pool water, swimming pool attractions, fountains and pond systems. UV treatment does not introduce any unwanted by-products into the water that could lead to possible side effects such as skin or eye irritation. UV treatment provides supplementary protection against chlorine-resistant organisms and reduction of algae formation in swimming and garden ponds without endangering the animal and plant population of the pond facilities. UV disinfection in swimming pool attractions and fountains prevents bacteria from aerosols from being inhaled.
Stainless steel reactor (1.4571 DIN EN 10217-7, external electropolished) with conical external threads according to DIN 10241:2000, quartz immersion tube and UV low-pressure lamp, electronic ballast in plastic housing with on/off switch, operating hours counter and plug (230 VAC), without UV monitoring.
Pool NS 15: (art. no. 891170)
Pool capacity: - 50m³
Flow rate: 13 m³/h at 250 J/m²; 5 m³/h at 400 J/m²
UV lamp: 1x 80 Watt; connection: 2" ET
Pool NS 25: (art. no. 891171)
Pool capacity: - 75m³
Flow rate: 25 m³/h at 250 J/m²; 10m³/h at 400 J/m²
UV lamp: 1x 125 Watt; connection: 2" ET
Optional:
Version with UV monitoring
Version with remote control input
Version with time relay output 230 VAC, 6A
Price on request
UVprofessional Pool medium pressure unit 131 m³/h
Product number:
891168
Flow rate at UV transmission 98% / 1cm and 600 J/m2 UV exposure:
131 m3/h
UV medium-pressure systems for water disinfection and the decomposition of organically bound chlorine (chloramines) in swimming pool water.
The cost-effective UV-C disinfection is excellently suited for swimming pool water, swimming pool attractions, fountains and pond systems. UV treatment does not introduce any unwanted by-products into the water that could lead to possible side effects such as skin or eye irritation. UV treatment provides supplementary protection against chlorine-resistant organisms and reduction of algae formation in swimming and garden ponds without endangering the animal and plant population of the pond facilities. UV disinfection in swimming pool attractions and fountains prevents bacteria from aerosols from being inhaled.
Stainless steel reactor (1.4571 DIN EN 10217-7, external electropolished) with flange connections according to DIN 2642, quartz immersion tube and UV medium pressure lamp, electronic ballast in sheet steel housing with multifunctional UV monitor with coloured background lighting, operating hours counter, manual/auto switch, power supply (3L, N, PE, 380/400V ±10%, 50/60 Hz) incl. UV monitoring system (ÖVGW / DVGW sensor), remote control input, temperature monitoring and signal outputs.
Pool MS 14:
Flow rate: 14 m³/h at 600 J/m²
UV lamp: 1x 650 Watt
Connection: DN 65, PN10
Pool MS 24:
Flow rate: 24 m³/h at 600 J/m²
UV lamp: 1x 1000 Watt
Connection: DN 65, PN10
Pool MS 42:
Flow rate: 42 m³/h at 600 J/m²
UV lamp: 1x 2000 Watt
Connection: DN 65, PN10
Pool MS 131:
Flow rate: 131 m³/h at 600 J/m²
UV lamp: 1x 3000 Watt
Connection: DN 150, PN10
Pool MS 247:
Flow rate: 247 m³/h at 600 J/m²
UV lamp: 1x 5000 Watt
Connection: DN 200, PN10
Price on request
UVprofessional Pool medium pressure unit 14 m³/h
Product number:
891165
Flow rate at UV transmission 98% / 1cm and 600 J/m2 UV exposure:
14 m3/h
UV medium-pressure systems for water disinfection and the decomposition of organically bound chlorine (chloramines) in swimming pool water.
The cost-effective UV-C disinfection is excellently suited for swimming pool water, swimming pool attractions, fountains and pond systems. UV treatment does not introduce any unwanted by-products into the water that could lead to possible side effects such as skin or eye irritation. UV treatment provides supplementary protection against chlorine-resistant organisms and reduction of algae formation in swimming and garden ponds without endangering the animal and plant population of the pond facilities. UV disinfection in swimming pool attractions and fountains prevents bacteria from aerosols from being inhaled.
Stainless steel reactor (1.4571 DIN EN 10217-7, external electropolished) with flange connections according to DIN 2642, quartz immersion tube and UV medium pressure lamp, electronic ballast in sheet steel housing with multifunctional UV monitor with coloured background lighting, operating hours counter, manual/auto switch, power supply (3L, N, PE, 380/400V ±10%, 50/60 Hz) incl. UV monitoring system (ÖVGW / DVGW sensor), remote control input, temperature monitoring and signal outputs.
Pool MS 14:
Flow rate: 14 m³/h at 600 J/m²
UV lamp: 1x 650 Watt
Connection: DN 65, PN10
Pool MS 24:
Flow rate: 24 m³/h at 600 J/m²
UV lamp: 1x 1000 Watt
Connection: DN 65, PN10
Pool MS 42:
Flow rate: 42 m³/h at 600 J/m²
UV lamp: 1x 2000 Watt
Connection: DN 65, PN10
Pool MS 131:
Flow rate: 131 m³/h at 600 J/m²
UV lamp: 1x 3000 Watt
Connection: DN 150, PN10
Pool MS 247:
Flow rate: 247 m³/h at 600 J/m²
UV lamp: 1x 5000 Watt
Connection: DN 200, PN10
Price on request
UVprofessional Pool medium pressure unit 24 m³/h
Product number:
891166
Flow rate at UV transmission 98% / 1cm and 600 J/m2 UV exposure:
24 m3/h
UV medium-pressure systems for water disinfection and the decomposition of organically bound chlorine (chloramines) in swimming pool water.
The cost-effective UV-C disinfection is excellently suited for swimming pool water, swimming pool attractions, fountains and pond systems. UV treatment does not introduce any unwanted by-products into the water that could lead to possible side effects such as skin or eye irritation. UV treatment provides supplementary protection against chlorine-resistant organisms and reduction of algae formation in swimming and garden ponds without endangering the animal and plant population of the pond facilities. UV disinfection in swimming pool attractions and fountains prevents bacteria from aerosols from being inhaled.
Stainless steel reactor (1.4571 DIN EN 10217-7, external electropolished) with flange connections according to DIN 2642, quartz immersion tube and UV medium pressure lamp, electronic ballast in sheet steel housing with multifunctional UV monitor with coloured background lighting, operating hours counter, manual/auto switch, power supply (3L, N, PE, 380/400V ±10%, 50/60 Hz) incl. UV monitoring system (ÖVGW / DVGW sensor), remote control input, temperature monitoring and signal outputs.
Pool MS 14:
Flow rate: 14 m³/h at 600 J/m²
UV lamp: 1x 650 Watt
Connection: DN 65, PN10
Pool MS 24:
Flow rate: 24 m³/h at 600 J/m²
UV lamp: 1x 1000 Watt
Connection: DN 65, PN10
Pool MS 42:
Flow rate: 42 m³/h at 600 J/m²
UV lamp: 1x 2000 Watt
Connection: DN 65, PN10
Pool MS 131:
Flow rate: 131 m³/h at 600 J/m²
UV lamp: 1x 3000 Watt
Connection: DN 150, PN10
Pool MS 247:
Flow rate: 247 m³/h at 600 J/m²
UV lamp: 1x 5000 Watt
Connection: DN 200, PN10
Price on request
UVprofessional Pool medium pressure unit 247 m³/h
Product number:
891169
Flow rate at UV transmission 98% / 1cm and 600 J/m2 UV exposure:
247 m3/h
UV medium-pressure systems for water disinfection and the decomposition of organically bound chlorine (chloramines) in swimming pool water.
The cost-effective UV-C disinfection is excellently suited for swimming pool water, swimming pool attractions, fountains and pond systems. UV treatment does not introduce any unwanted by-products into the water that could lead to possible side effects such as skin or eye irritation. UV treatment provides supplementary protection against chlorine-resistant organisms and reduction of algae formation in swimming and garden ponds without endangering the animal and plant population of the pond facilities. UV disinfection in swimming pool attractions and fountains prevents bacteria from aerosols from being inhaled.
Stainless steel reactor (1.4571 DIN EN 10217-7, external electropolished) with flange connections according to DIN 2642, quartz immersion tube and UV medium pressure lamp, electronic ballast in sheet steel housing with multifunctional UV monitor with coloured background lighting, operating hours counter, manual/auto switch, power supply (3L, N, PE, 380/400V ±10%, 50/60 Hz) incl. UV monitoring system (ÖVGW / DVGW sensor), remote control input, temperature monitoring and signal outputs.
Pool MS 14:
Flow rate: 14 m³/h at 600 J/m²
UV lamp: 1x 650 Watt
Connection: DN 65, PN10
Pool MS 24:
Flow rate: 24 m³/h at 600 J/m²
UV lamp: 1x 1000 Watt
Connection: DN 65, PN10
Pool MS 42:
Flow rate: 42 m³/h at 600 J/m²
UV lamp: 1x 2000 Watt
Connection: DN 65, PN10
Pool MS 131:
Flow rate: 131 m³/h at 600 J/m²
UV lamp: 1x 3000 Watt
Connection: DN 150, PN10
Pool MS 247:
Flow rate: 247 m³/h at 600 J/m²
UV lamp: 1x 5000 Watt
Connection: DN 200, PN10
Price on request

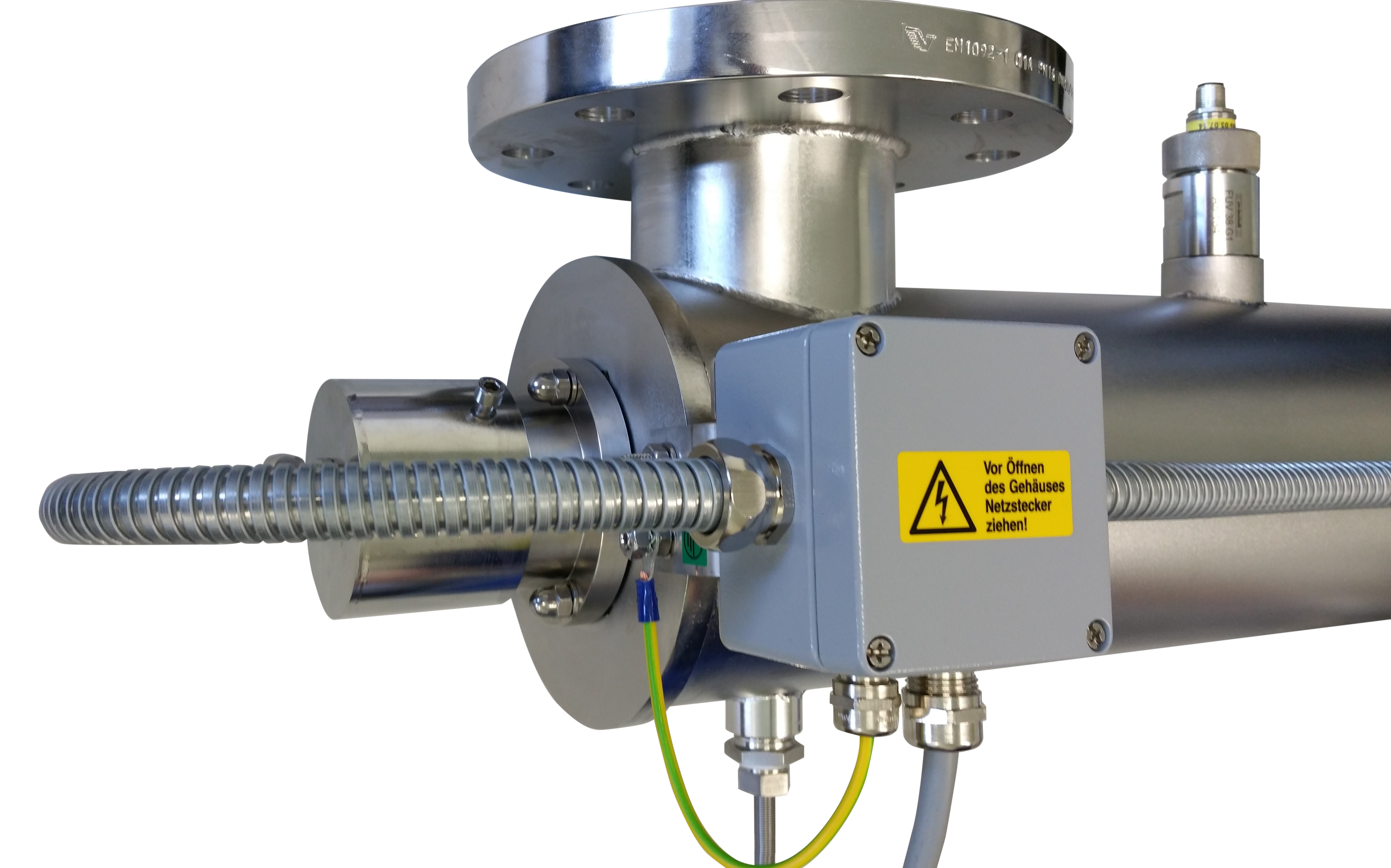

UVprofessional Pool medium pressure unit 42 m³/h
Product number:
891167
Flow rate at UV transmission 98% / 1cm and 600 J/m2 UV exposure:
42 m3/h
UV medium-pressure systems for water disinfection and the decomposition of organically bound chlorine (chloramines) in swimming pool water.
The cost-effective UV-C disinfection is excellently suited for swimming pool water, swimming pool attractions, fountains and pond systems. UV treatment does not introduce any unwanted by-products into the water that could lead to possible side effects such as skin or eye irritation. UV treatment provides supplementary protection against chlorine-resistant organisms and reduction of algae formation in swimming and garden ponds without endangering the animal and plant population of the pond facilities. UV disinfection in swimming pool attractions and fountains prevents bacteria from aerosols from being inhaled.
Stainless steel reactor (1.4571 DIN EN 10217-7, external electropolished) with flange connections according to DIN 2642, quartz immersion tube and UV medium pressure lamp, electronic ballast in sheet steel housing with multifunctional UV monitor with coloured background lighting, operating hours counter, manual/auto switch, power supply (3L, N, PE, 380/400V ±10%, 50/60 Hz) incl. UV monitoring system (ÖVGW / DVGW sensor), remote control input, temperature monitoring and signal outputs.
Pool MS 14:
Flow rate: 14 m³/h at 600 J/m²
UV lamp: 1x 650 Watt
Connection: DN 65, PN10
Pool MS 24:
Flow rate: 24 m³/h at 600 J/m²
UV lamp: 1x 1000 Watt
Connection: DN 65, PN10
Pool MS 42:
Flow rate: 42 m³/h at 600 J/m²
UV lamp: 1x 2000 Watt
Connection: DN 65, PN10
Pool MS 131:
Flow rate: 131 m³/h at 600 J/m²
UV lamp: 1x 3000 Watt
Connection: DN 150, PN10
Pool MS 247:
Flow rate: 247 m³/h at 600 J/m²
UV lamp: 1x 5000 Watt
Connection: DN 200, PN10
Price on request
