UV Systems for Drinking Water
DVGW-certified UV systems ensure reliable disinfection of drinking water according to strict German and European standards. They use UV-C light to effectively inactivate microorganisms, bacteria, viruses, and other pathogens without the need for chemical disinfectants. The DVGW certification confirms the verified efficacy and safety of these systems for use in public drinking water supplies.
Typical Applications:
- Drinking water supply for residential and industrial facilities
- Process water in food and beverage production
- Swimming pools and wellness facilities with drinking water requirements
- Laboratory and research applications
UV professional DVGW HOT 17,6 m³/h
Product number:
880490
Flow rate at UV transmission 98% / 1cm and 400 J/m2 UV exposure - warm water up to 60°C:
17,6 m3/h
DVGW certified unit series for disinfection of drinking water up zo 60 °CFeaturesRadiation chamber made of V4A stainless steel 1.4404 electropolished with sampling tap made of stainless steel, flammable at inlet and outlet Built-in measuring window according to DVGW W-294 with screwed-on standardised selective UV-C sensor in the wave range of 254 nm according to DVGW W-294 or Ö-Norm 5873-1 Venting and draining plug Built-in water baffle to divert the flow of water Longlife high-performance UV-C low-pressure lamp built into high-quality quartz jacket pipe Electronic monitoring device with illuminated LCD display of UV-C intensity in W/m2, operating hours, number of switch-ons and mains failures, rolling display of optionally measured temperature and flow rate Signal LEDs for indication of "operation", "cleaning" and "malfunction" as well as on/off push-button Potential-free signalling contacts for pre-alarm and malfunction 4-20 mA signal output proportional to UV-C intensity, ext. enable on/off, relay output for controlling a discard valve depending on the water temperature (cooling) ApplicationsDrinking water supply Industrial process water Pharmaceutical and chemical industry Beverage industry and breweries Food industry Hospitals and clinics Pure and ultra-pure water disinfection Plants for cold and hot water (legionella prophylaxis) Swimming and whirlpool baths Further advantages Compact design Integrated wall mounting plate on irradiation chamber Economical Unit variants Neomeris UV professional DVGW 3.5 HOT Neomeris UV professional DVGW 9.5 HOT Neomeris UV professional DVGW 17.6 HOT Neomeris UV professional DVGW 24.0 HOT
Price on request
UV professional DVGW HOT 24 m³/h
Product number:
880493
Flow rate at UV transmission 98% / 1cm and 400 J/m2 UV exposure - warm water up to 60°C:
24 m3/h
DVGW certified unit series for disinfection of drinking water up zo 60 °CFeaturesRadiation chamber made of V4A stainless steel 1.4404 electropolished with sampling tap made of stainless steel, flammable at inlet and outlet Built-in measuring window according to DVGW W-294 with screwed-on standardised selective UV-C sensor in the wave range of 254 nm according to DVGW W-294 or Ö-Norm 5873-1 Venting and draining plug Built-in water baffle to divert the flow of water Longlife high-performance UV-C low-pressure lamp built into high-quality quartz jacket pipe Electronic monitoring device with illuminated LCD display of UV-C intensity in W/m2, operating hours, number of switch-ons and mains failures, rolling display of optionally measured temperature and flow rate Signal LEDs for indication of "operation", "cleaning" and "malfunction" as well as on/off push-button Potential-free signalling contacts for pre-alarm and malfunction 4-20 mA signal output proportional to UV-C intensity, ext. enable on/off, relay output for controlling a discard valve depending on the water temperature (cooling) ApplicationsDrinking water supply Industrial process water Pharmaceutical and chemical industry Beverage industry and breweries Food industry Hospitals and clinics Pure and ultra-pure water disinfection Plants for cold and hot water (legionella prophylaxis) Swimming and whirlpool baths Further advantages Compact design Integrated wall mounting plate on irradiation chamber Economical Unit variants Neomeris UV professional DVGW 3.5 HOT Neomeris UV professional DVGW 9.5 HOT Neomeris UV professional DVGW 17.6 HOT Neomeris UV professional DVGW 24.0 HOT
Price on request

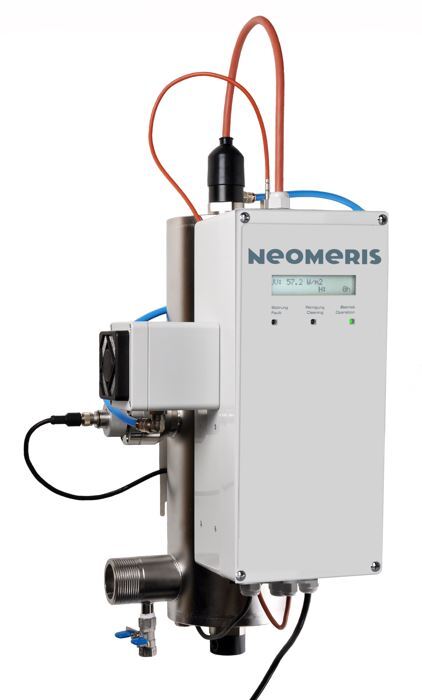

UV professional DVGW HOT 3,5 m³/h
Product number:
880484
Flow rate at UV transmission 98% / 1cm and 400 J/m2 UV exposure - warm water up to 60°C:
3,5 m3/h
DVGW certified unit series for disinfection of drinking water up zo 60 °CFeaturesRadiation chamber made of V4A stainless steel 1.4404 electropolished with sampling tap made of stainless steel, flammable at inlet and outlet Built-in measuring window according to DVGW W-294 with screwed-on standardised selective UV-C sensor in the wave range of 254 nm according to DVGW W-294 or Ö-Norm 5873-1 Venting and draining plug Built-in water baffle to divert the flow of water Longlife high-performance UV-C low-pressure lamp built into high-quality quartz jacket pipe Electronic monitoring device with illuminated LCD display of UV-C intensity in W/m2, operating hours, number of switch-ons and mains failures, rolling display of optionally measured temperature and flow rate Signal LEDs for indication of "operation", "cleaning" and "malfunction" as well as on/off push-button Potential-free signalling contacts for pre-alarm and malfunction 4-20 mA signal output proportional to UV-C intensity, ext. enable on/off, relay output for controlling a discard valve depending on the water temperature (cooling) ApplicationsDrinking water supply Industrial process water Pharmaceutical and chemical industry Beverage industry and breweries Food industry Hospitals and clinics Pure and ultra-pure water disinfection Plants for cold and hot water (legionella prophylaxis) Swimming and whirlpool baths Further advantages Compact design Integrated wall mounting plate on irradiation chamber Economical Unit variants Neomeris UV professional DVGW 3.5 HOT Neomeris UV professional DVGW 9.5 HOT Neomeris UV professional DVGW 17.6 HOT Neomeris UV professional DVGW 24.0 HOT
Price on request
UV professional DVGW HOT 9,5 m³/h
Product number:
880487
Flow rate at UV transmission 98% / 1cm and 400 J/m2 UV exposure - warm water up to 60°C:
9,5 m3/h
DVGW certified unit series for disinfection of drinking water up zo 60 °CFeaturesRadiation chamber made of V4A stainless steel 1.4404 electropolished with sampling tap made of stainless steel, flammable at inlet and outlet Built-in measuring window according to DVGW W-294 with screwed-on standardised selective UV-C sensor in the wave range of 254 nm according to DVGW W-294 or Ö-Norm 5873-1 Venting and draining plug Built-in water baffle to divert the flow of water Longlife high-performance UV-C low-pressure lamp built into high-quality quartz jacket pipe Electronic monitoring device with illuminated LCD display of UV-C intensity in W/m2, operating hours, number of switch-ons and mains failures, rolling display of optionally measured temperature and flow rate Signal LEDs for indication of "operation", "cleaning" and "malfunction" as well as on/off push-button Potential-free signalling contacts for pre-alarm and malfunction 4-20 mA signal output proportional to UV-C intensity, ext. enable on/off, relay output for controlling a discard valve depending on the water temperature (cooling) ApplicationsDrinking water supply Industrial process water Pharmaceutical and chemical industry Beverage industry and breweries Food industry Hospitals and clinics Pure and ultra-pure water disinfection Plants for cold and hot water (legionella prophylaxis) Swimming and whirlpool baths Further advantages Compact design Integrated wall mounting plate on irradiation chamber Economical Unit variants Neomeris UV professional DVGW 3.5 HOT Neomeris UV professional DVGW 9.5 HOT Neomeris UV professional DVGW 17.6 HOT Neomeris UV professional DVGW 24.0 HOT
Price on request
