Suction lances K- and VMS pumps

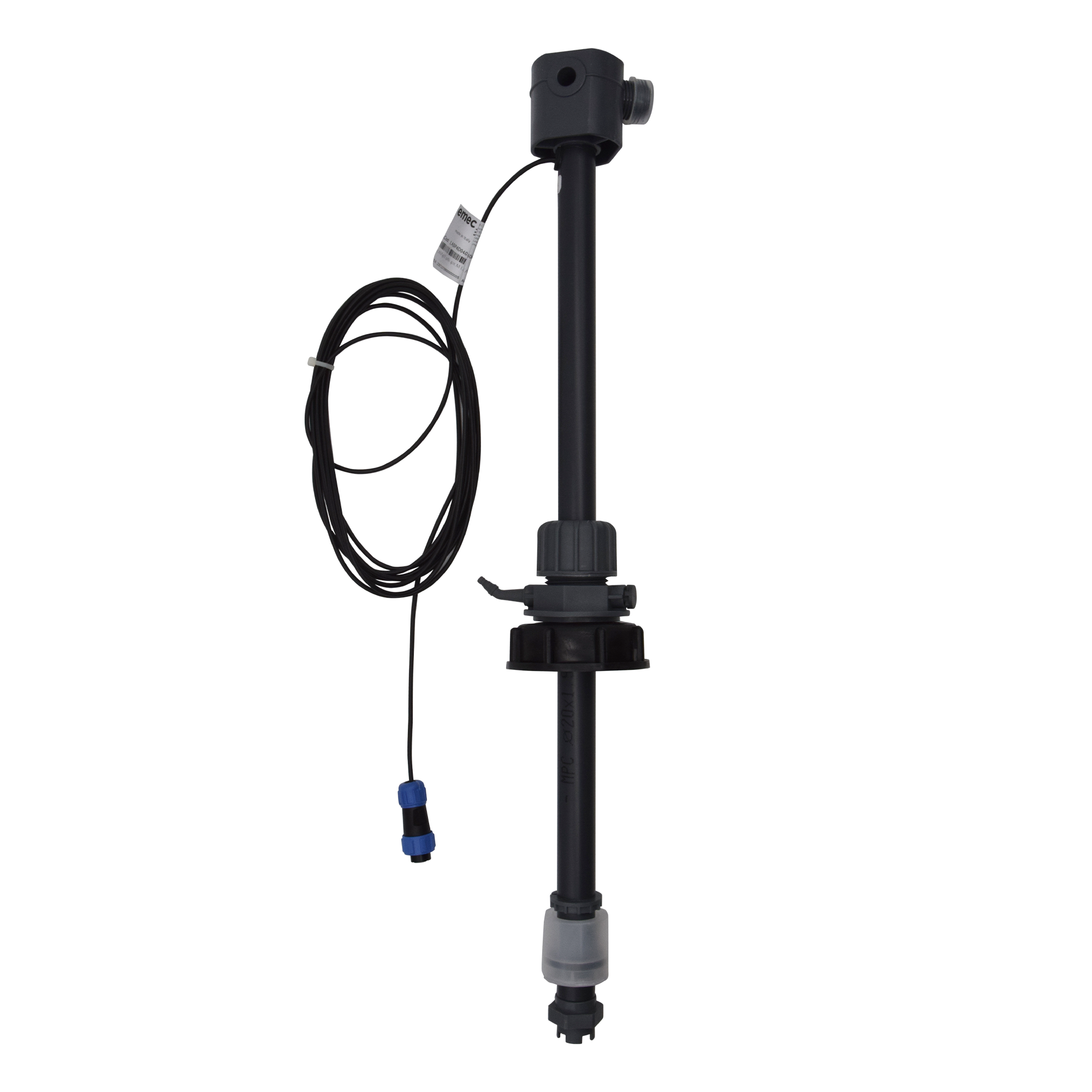

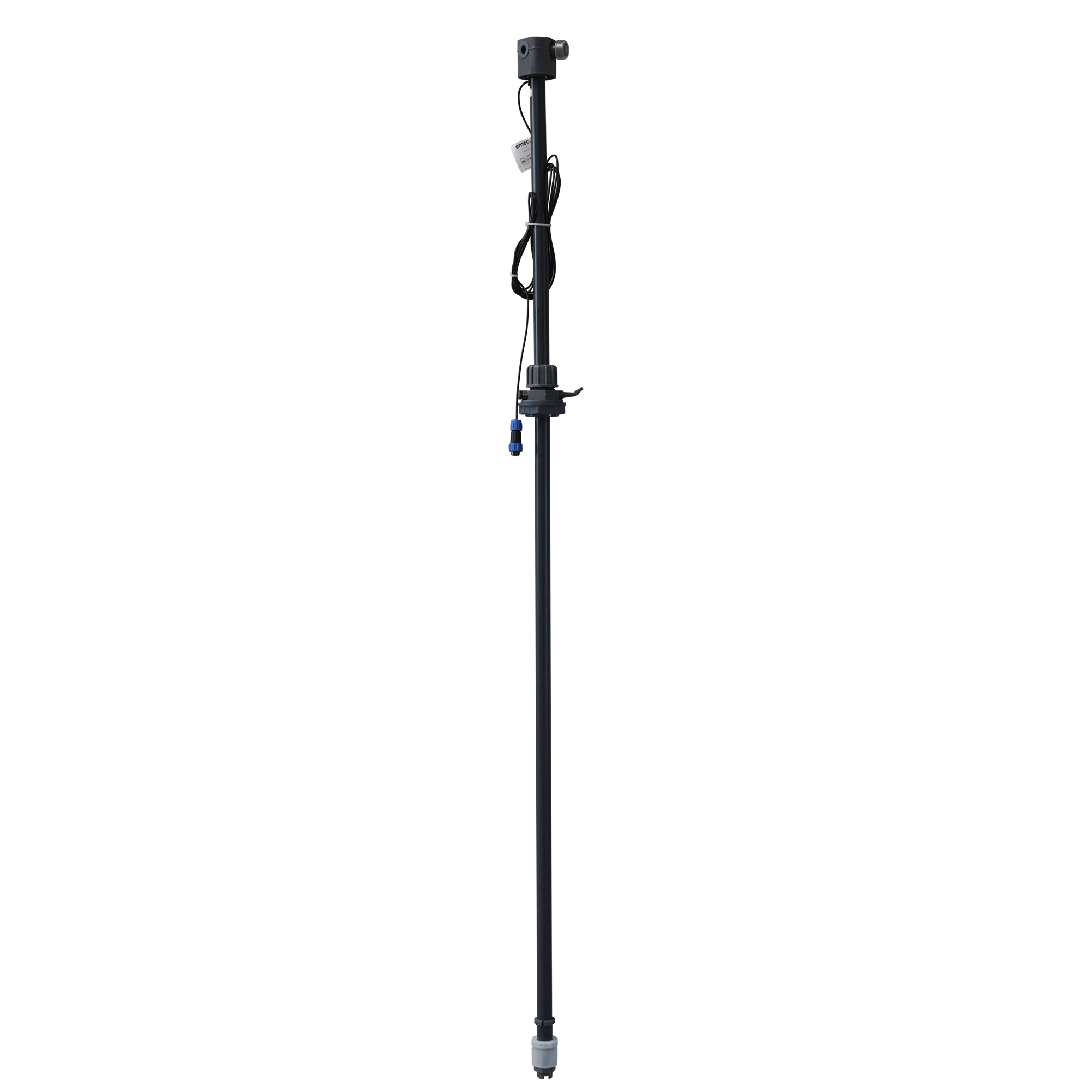

Suction lance for extracting a medium directly from a supply container (canister/IBC/CNT tank/barrel)Foot valve with pre-filter and non-return valve. The level switch generates a digital empty signal. Venting nipple 4mm for return of venting hose from dosing pump or overpressure/multifunction valve.Our suction lances can be adjusted in height, this means that, for example, instead of pumping from a 50 litre container, you can also pump from a 10, 20 or 30 litre container with the 40cm suction lance.Series: LASP4Material O-ring: EPDM (neutral) or FP (Viton)Immersion length: 40cm, 75cm or 122cmConnection on the unit side: M12 or BNCThread/hose connection (mm): 1/2 4x6 (suction capacity max 10l/h)Number of suction connections: 1-suction connectionMounting connection: C61 canister connection (for 40cm suction lance) or mounting connection 1 1/2" CNT/IBC (for 122cm suction lance)Number of floats/switching direction/electrical connection: 1st level/N.O/M12(PRIUS/PRISMA)Length of connection cable: 3.5mIntake filter: LASP4Special feature: Valve ball ceramic
