Service sets VMS-MF pump

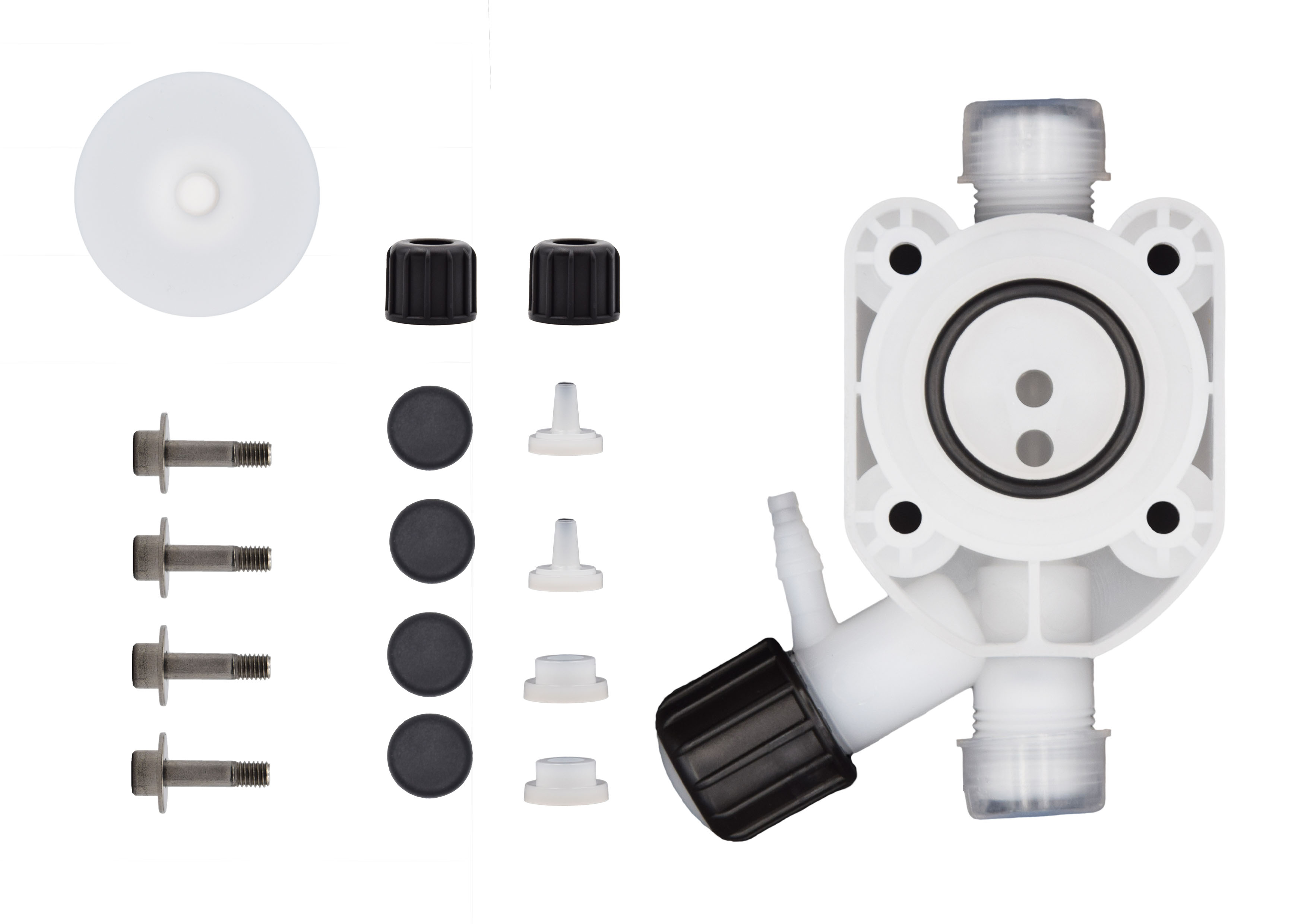

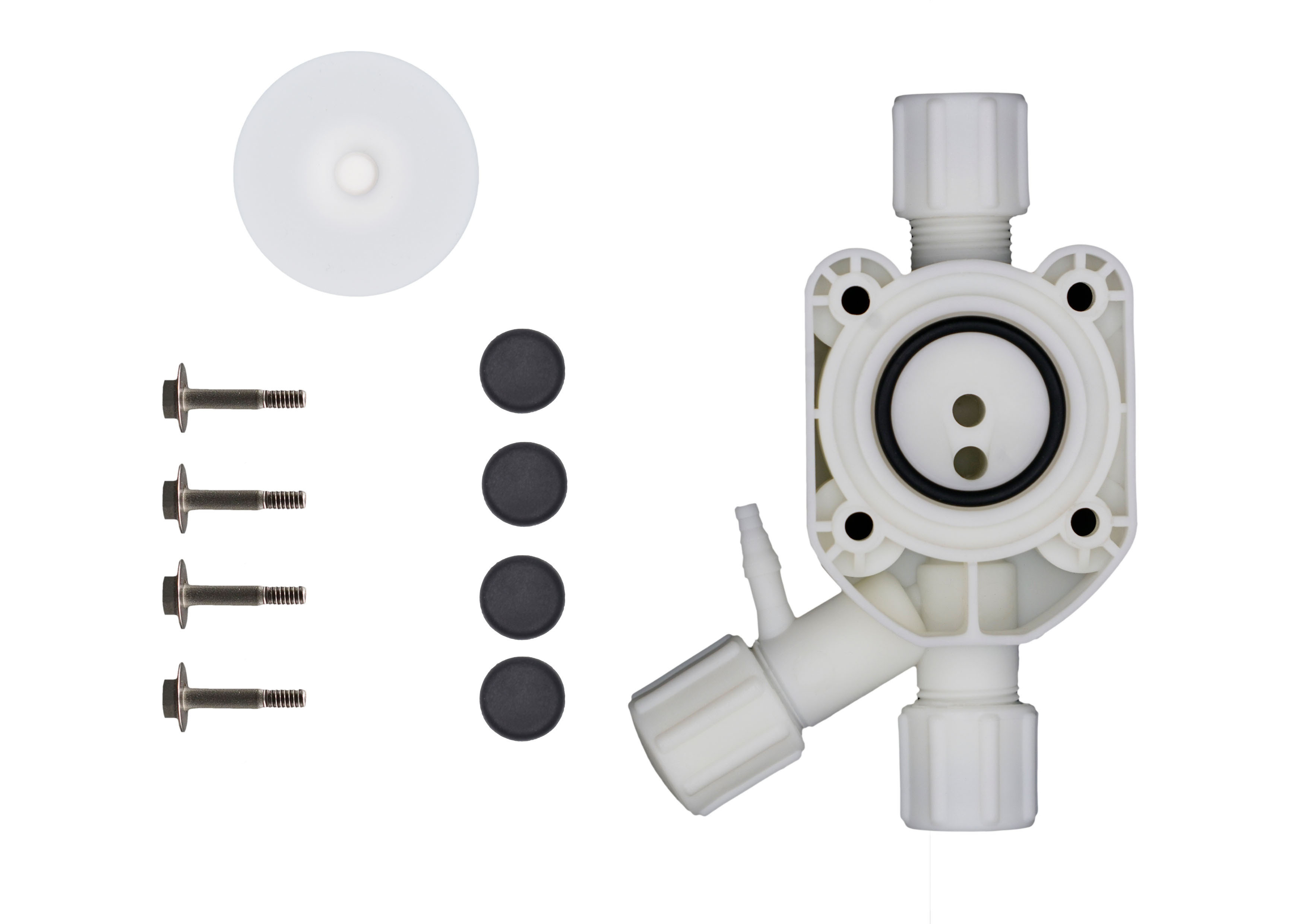

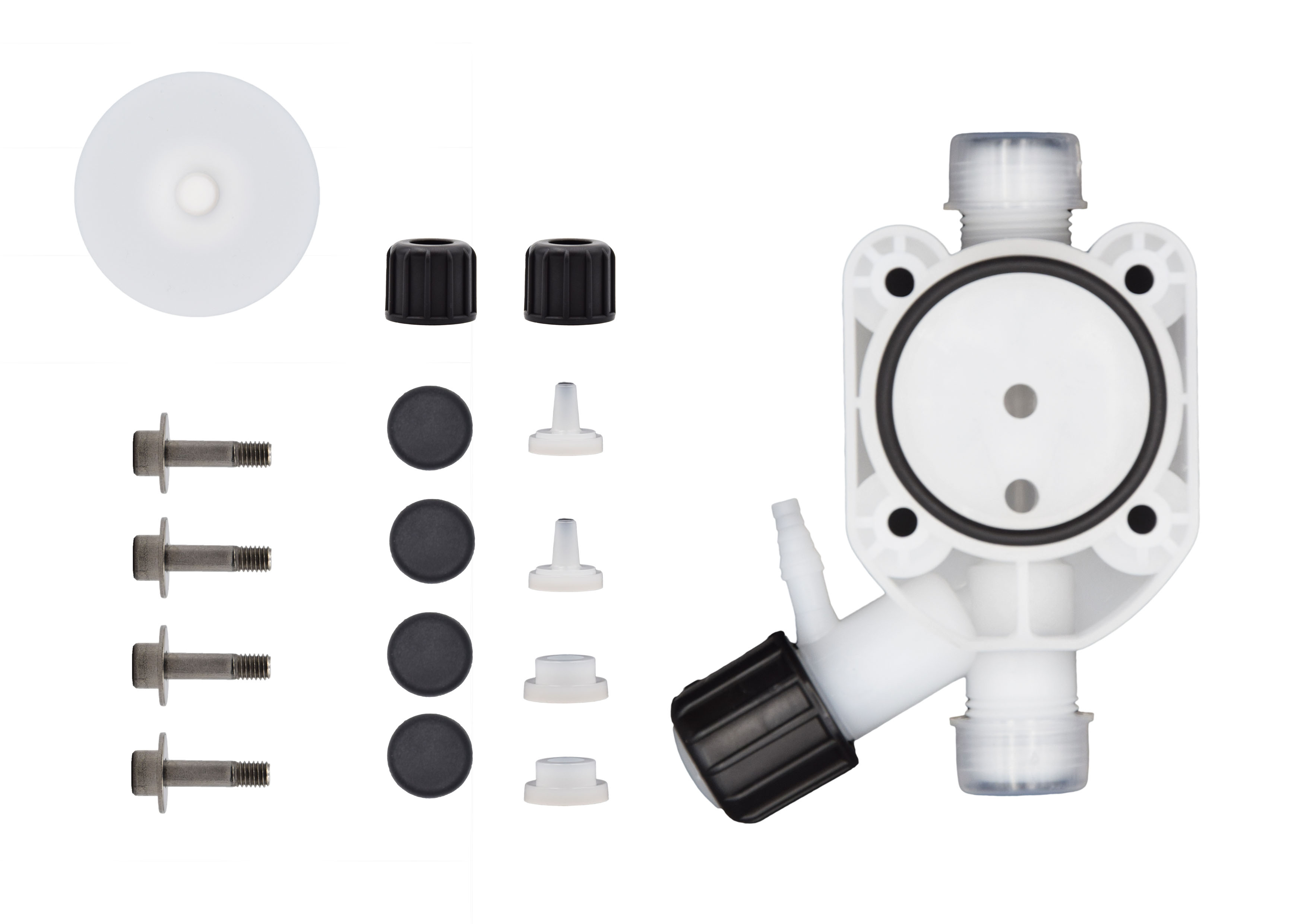

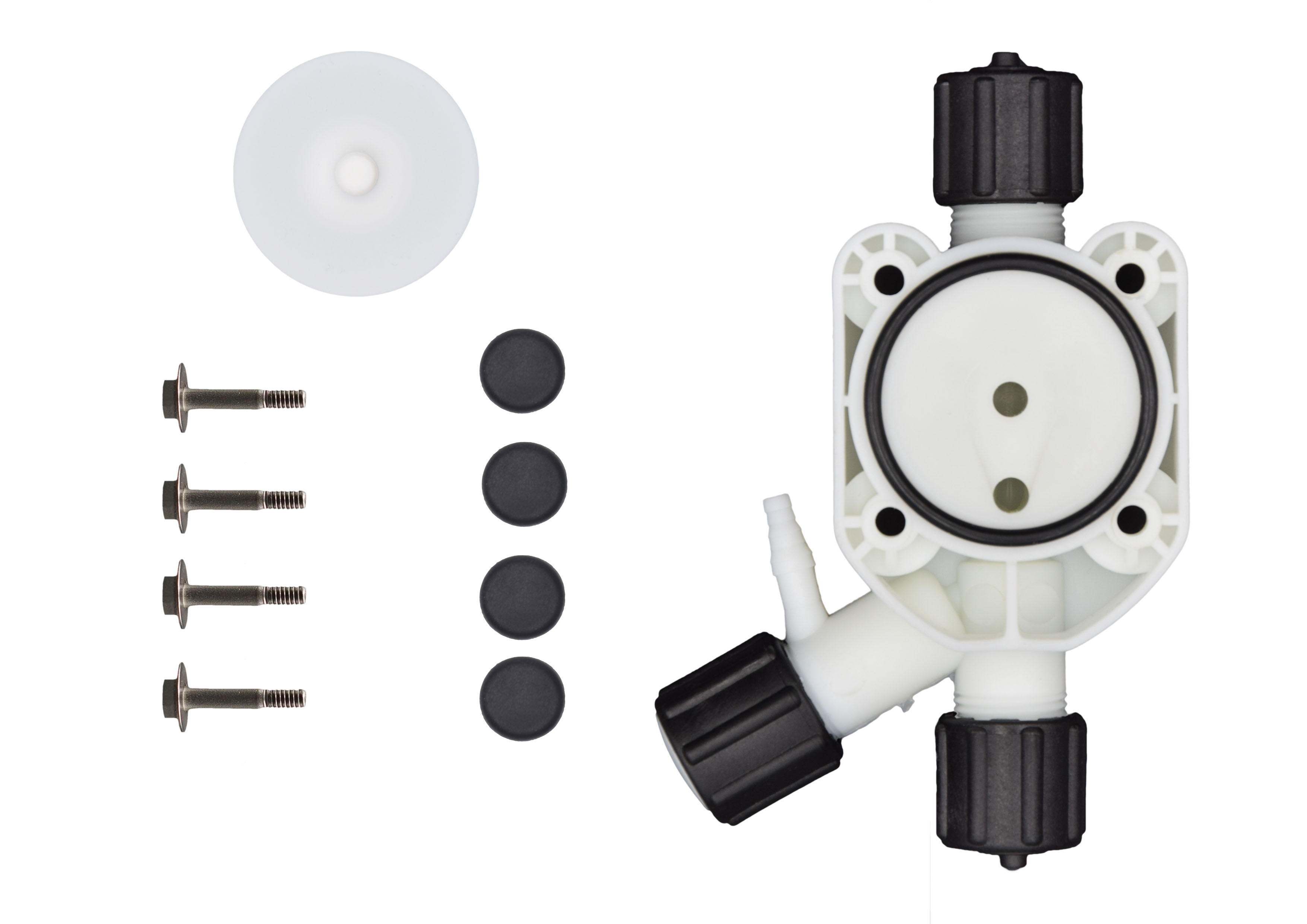

The emec service set for the VMS MF pump consists of the pump head, including sealing ring and a diaphragm, which is the same for all versions of the pump and is made of PTFE.Our service sets are available in the versions J and K. The only difference is the size of the pump head, which varies depending on the pressure and flow rate. The second choice on your part determines the material of the pump head and the material of the sealing ring.The correct selection of the service set, i.e. the correct selection of the pump head size as well as the pump head and seal material, can easily be made via your VMS pump type plate as follows. 1. On the type plate of your VMS pump you will find the pressure "bar xxx - PSI xxx" above the serial number and then the pump capacity "l/h xxx - gph xxx". With these two indications you can easily determine the correct pump head size (J, K).(see example picture of type plate in the article) Version J 5 bar / 1 litre per hour 10 bar / 1 litre per hour 20 bar / 1 litre per hour Version K 1 bar / 16 litres per hour 2 bar / 15 litres per hour 3 bar / 10 litres per hour 4 bar / 8 litres per hour 5 bar / 10 litres per hour 5 bar / 12 litres per hour 7 bar / 6 litres per hour 10 bar / 4 litres per hour 10 bar / 5 litres per hour 10 bar / 10 litres per hour 15 bar / 2 litres per hour 15 bar / 4 litres per hour 15 bar / 5 litres per hour 18 bar / 2 litres per hour 18 bar / 4 litres per hour 2. On the type plate you will find hidden in the "code" the reference to the pump head mounted at delivery and its sealing material. The ninth character indicates the sealing material. (see example picture of the type plate in the article) The most common types are listed below and these are shown via our selection matrix: K = PVDF pump head with Viton seal D = PP pump head with EPDM seal Service set contents: PVDF pump head with Viton seal:1x pump head (dosing head) incl. seal 1x PTFE diaphragm - Stainless steel screws and caps PP pump head with EPDM seal:1x pump head (dosing head) incl. seal 1x PTFE diaphragm - Stainless steel screws and caps
