EMEC Prius Series

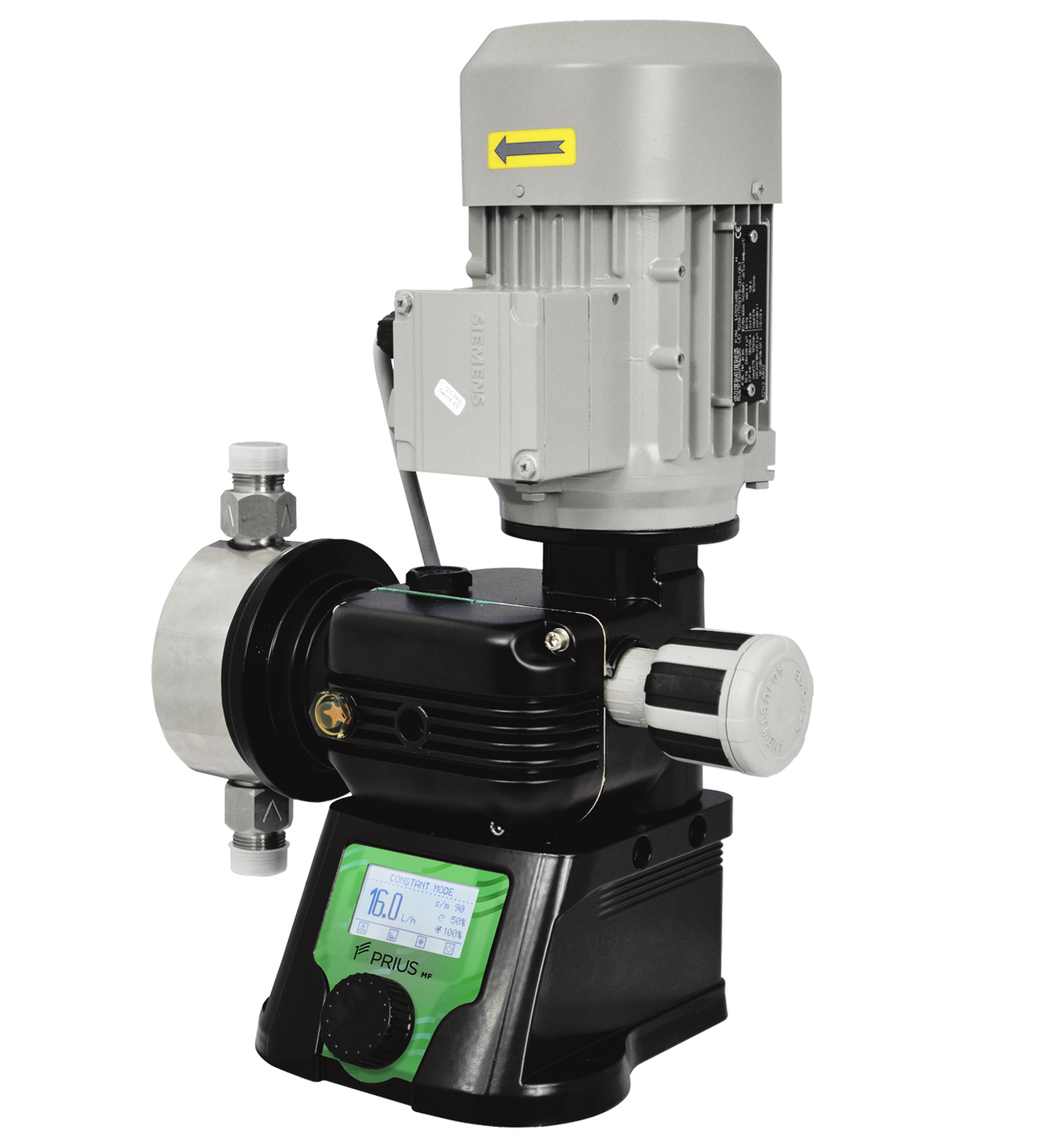

The EMEC Prius Series includes motor-driven dosing pumps designed for demanding industrial applications. With flow rates up to 1000 l/h and operating pressures up to 100 bar, these pumps deliver high performance and reliability. Available in various models, including the digital multifunction (MF) version, they offer versatile control options and are suitable for a wide range of applications.
Typical Applications:
- Drinking water treatment
- Industrial process water treatment
- Cleaning processes in the food industry
- Chemical industry
- Agricultural applications

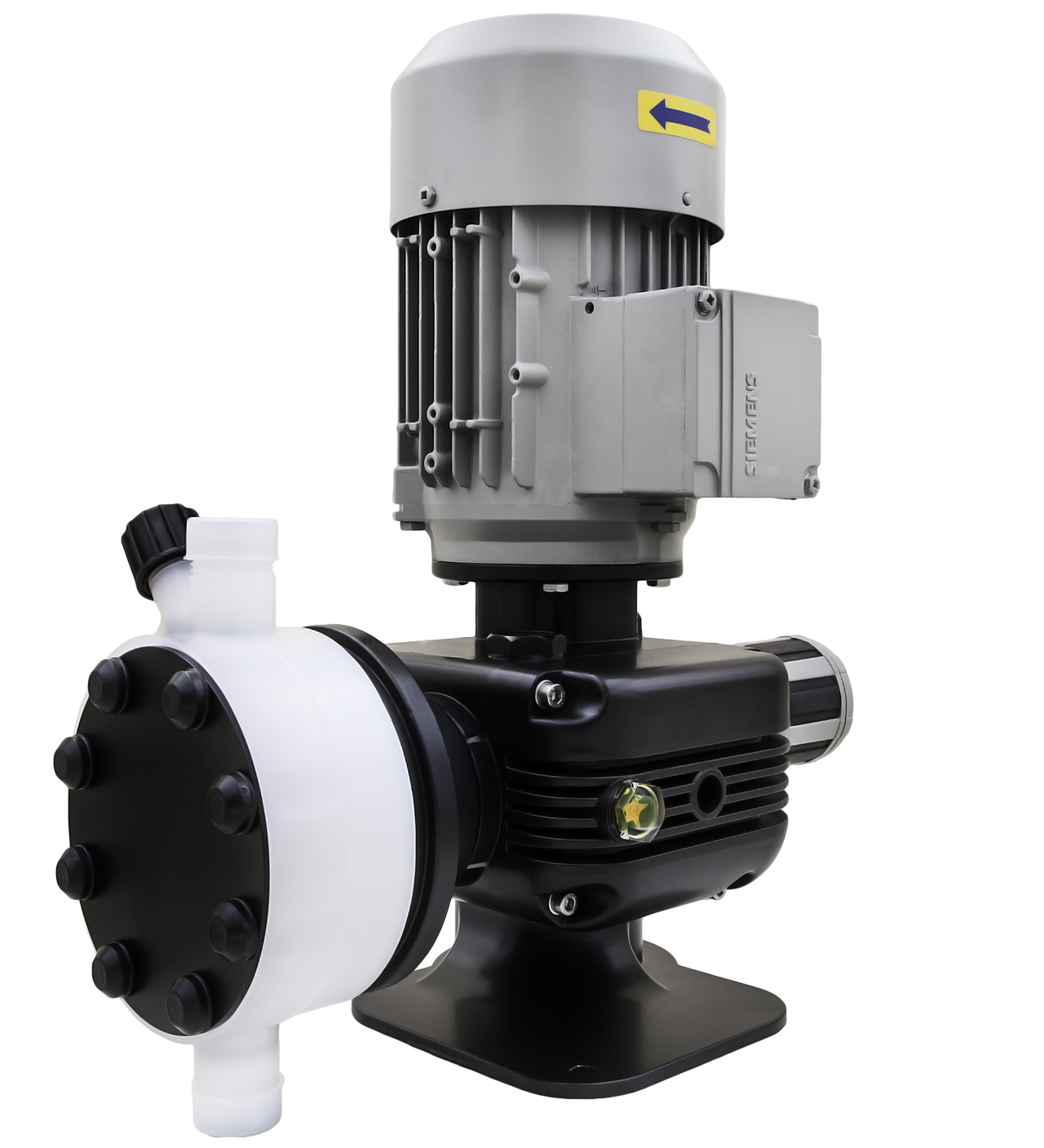

The dosing pumps with motor in the PRIUS series were developed by EMEC to meet the highest requirements. The PRIUS D 50 Hz models ensure constant dosing and are equipped with a PTFE diaphragm. They also offer a choice of different power supply options including 380 VAC (three-phase), 220 VAC (single-phase) and 115 VAC (single-phase). In addition, the dosing pumps are available in two different pump head types: PVDF (polyvinylidene fluoride) and PP (polypropylene). Outputs: 1000 l/h 100 bar Power supply: 380 VAC 220 VAC 115 VAC Vent pipe: Manual Automatic Features Horizontal mounting Aluminium housing Spring return mechanism Double ball valves (if available) Mechanical stroke adjustment Infinitely variable flow control from 0 to 100% with MANUAL adjustment on the rotary knob Hydraulic parts available in various sizes and materials Tropicalised motor Installation: Installation kit A included Installation kit B and C sold separately The pump with AISI316L pump body does not include installation accessories #BBD0E0 »
The dosing pumps with motor in the PRIUS series were developed by EMEC to meet the highest requirements. The PRIUS D 50 Hz models ensure constant dosing and are equipped with a PTFE diaphragm. They also offer a choice of different power supply options including 380 VAC (three-phase), 220 VAC (single-phase) and 115 VAC (single-phase). In addition, the dosing pumps are available in two different pump head types: PVDF (polyvinylidene fluoride) and PP (polypropylene). Outputs: 1000 l/h 100 bar Power supply: 380 VAC 220 VAC 115 VAC Vent pipe: Manual Automatic Features Horizontal mounting Aluminium housing Spring return mechanism Double ball valves (if available) Mechanical stroke adjustment Infinitely variable flow control from 0 to 100% with MANUAL adjustment on the rotary knob Hydraulic parts available in various sizes and materials Tropicalised motor Installation: Installation kit A included Installation kit B and C sold separately The pump with AISI316L pump body does not include installation accessories
The PRIUS piston metering pumps feature a spring return and combine efficiency and chemical resistance with a wide range of flow rates. They also offer a choice of power supply options including 240 VAC (single-phase) and 115 VAC (single-phase). The pump head is made of PP (polypropylene). Features Multifunction pump with single-phase power supply Operating mode: constant, ppm, %, mlq, pause-work, pulse, weekly, mA, volt and batch Level control Alarms Standby Double position of the electronic unit (standard or rotated position) Aluminium housing Mechanical stroke adjustment Hydraulic parts available in different sizes and materials Valves with double ball Tropicalised motors Insulation class F Energy efficiency IE 1
